Husqvarna 460 Chain Saw

Model: 460

Back To Assemblies

Save Part Not Listed?
product name

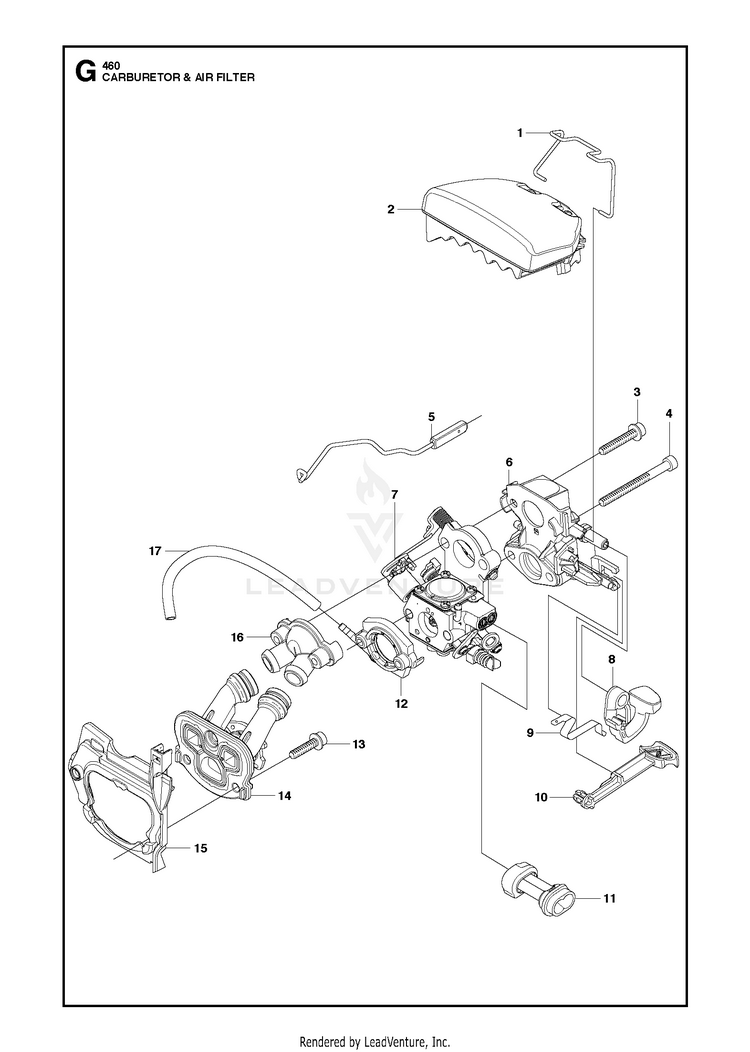

CARBURETOR & AIR FILTER

...
...
2
AIR FILTER µ44 HUS-537255702
...
16
BELLOWS HUS-537241401
...
13
SCREW HUS-503200216
...
7
CARBURETOR WTEA-1A P003 Walbro WTEA-1 HUS-531440701
...
14
INLET PIPE HUS-537321002
...
6
FILTER HOLDER HUS-544011101
...
5
THROTTLE ROD HUS-537260802
...
3
SCREW HUS-503215525
...
2
AIR FILTER µ80 HUS-537255701
...
11
GUIDE SLEEVE CARB HUS-544071401
...
17
FUEL HOSE HUS-503400610
...
4
SCREW HUS-503217450
...
10
CHOKE CONTROL HUS-537255601
...
15
PARTITION HUS-537371401
...
8
STOP LEVER HUS-537255501
...
2
AIR FILTER FELT HUS-537255703
...
12
FLANGE HUS-537241501
...
1
LOOP HUS-537304901
...
9
SPRING HUS-503869702
