Husqvarna 460 Chain Saw

Model: 460

Back To Assemblies

Save Part Not Listed?
product name

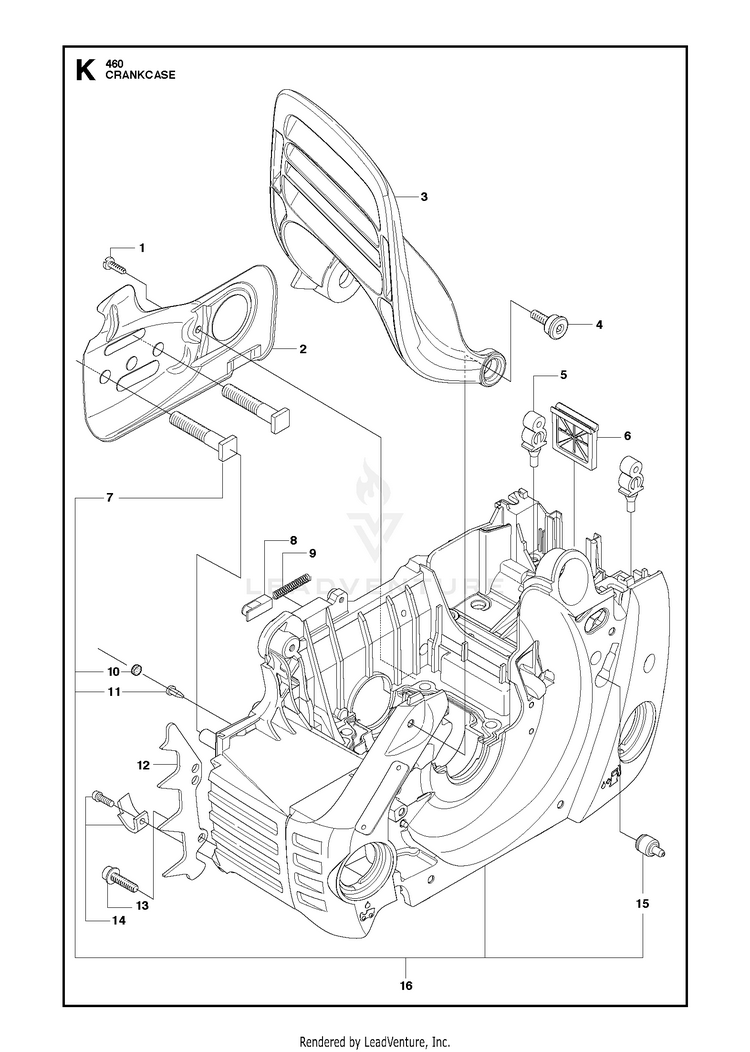

CRANKCASE

...
...
11
VALVE-CHECK (DUCKBILL) HUS-530026119
...
15
FUEL TANK VENT HUS-501152901
...
12
FELLING DOG HUS-503973801
...
5
DAMPNER HUS-597909701
...
16
CRANKCASE ASSY, GREY HUS-510065920
...
2
PLATE HUS-537271302
...
8
CATCH HUS-503892401
...
6
GROMMET HUS-537260401
...
1
SCREW HUS-503217010
...
13
SCREW IHSCFT HUS-503216872
...
4
SCREW, HAND GUARD HUS-537296501
...
7
BOLT HUS-537227801
...
9
LOCK SPRING HUS-503436501
...
10
SINTERED BRONZE FILTER HUS-537403502
...
3
HAND GUARD HUS-537284301
...
14
CHAIN CATCHER HUS-503910671
Schematic Image Zoomed
