Husqvarna 460 Chain Saw

Model: 460

Back To Assemblies

Save Part Not Listed?
product name

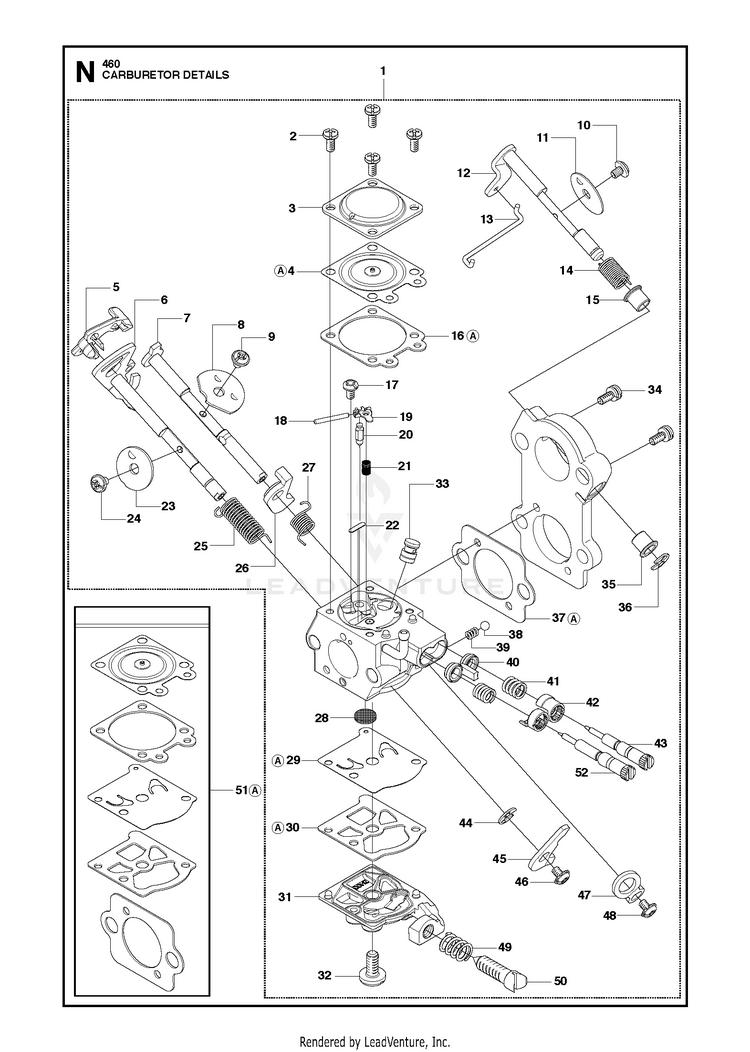

CARBURETOR DETAILS

...
...
27
SPRING HUS-537408601
...
12
SHAFT HUS-537406901
...
33
NOZZLE ASSY HUS-502846801
...
11
CHOKE FLAP HUS-537406801
...
36
CLIPS HUS-502119801
...
5
BUCKLE HUS-537306201
...
18
FULCRUM PIN HUS-505520125
...
14
SPRING HUS-537407001
...
43
NEEDLE High Speed HUS-502847201
...
4
DIAPHRAGM HUS-502847001
...
21
SPRING HUS-503914701
...
51
GASKET SET A = Set of Gaskets HUS-505278401
...
17
SCREW HUS-502847101
...
15
SLEEVE HUS-537406701
...
25
SPRING HUS-537408401
...
42
LIMITER CAP HUS-544970801
...
40
RETAINER HUS-544971401
...
37
GASKET HUS-537408101
...
39
SPRING HUS-501468401
...
9
SCREW HUS-501468701
...
50
SCREW HUS-537408201
...
49
SPRING HUS-503564201
...
48
SCREW HUS-501468701
...
38
BALL HUS-501468501
...
8
VALVE HUS-537407701
...
13
ROD HUS-537407201
...
6
SHAFT HUS-537407401
...
52
NEEDLE Low Speed HUS-502847301
...
44
CLIPS HUS-502119801
...
35
SLEEVE HUS-537406601
...
10
SCREW HUS-501468701
...
41
SPRING HUS-544971001
...
29
PUMP DIAPHRAGM HUS-504130807
...
22
PLUG HUS-502846901
...
3
DIAPHRAGM COVER HUS-505316754
...
31
COVER HUS-537407301
...
16
GASKET HUS-504350906
...
34
SCREW HUS-537408301
...
46
SCREW HUS-501468701
...
7
SHAFT HUS-537407501
...
24
SCREW HUS-544111501
...
30
GASKET HUS-504130906
...
26
LEVER HUS-537409201
...
28
FUEL INLET SCREEN HUS-501666101
...
20
INLET NEEDLE HUS-503563401
...
45
LEVER HUS-537407101
...
23
VALVE HUS-502846601
...
47
PLATE HUS-537407601
...
2
SCREW HUS-503584601
...
1
CARBURETOR WTEA-1A P003 WALBRO, WTEA-1 HUS-531440701
...
32
SCREW HUS-501466901
...
19
LEVER HUS-502847401
