Husqvarna 460 (2009-10) Chain Saw

Model: 460 (2009-10)

Back To Assemblies

Save Part Not Listed?
product name

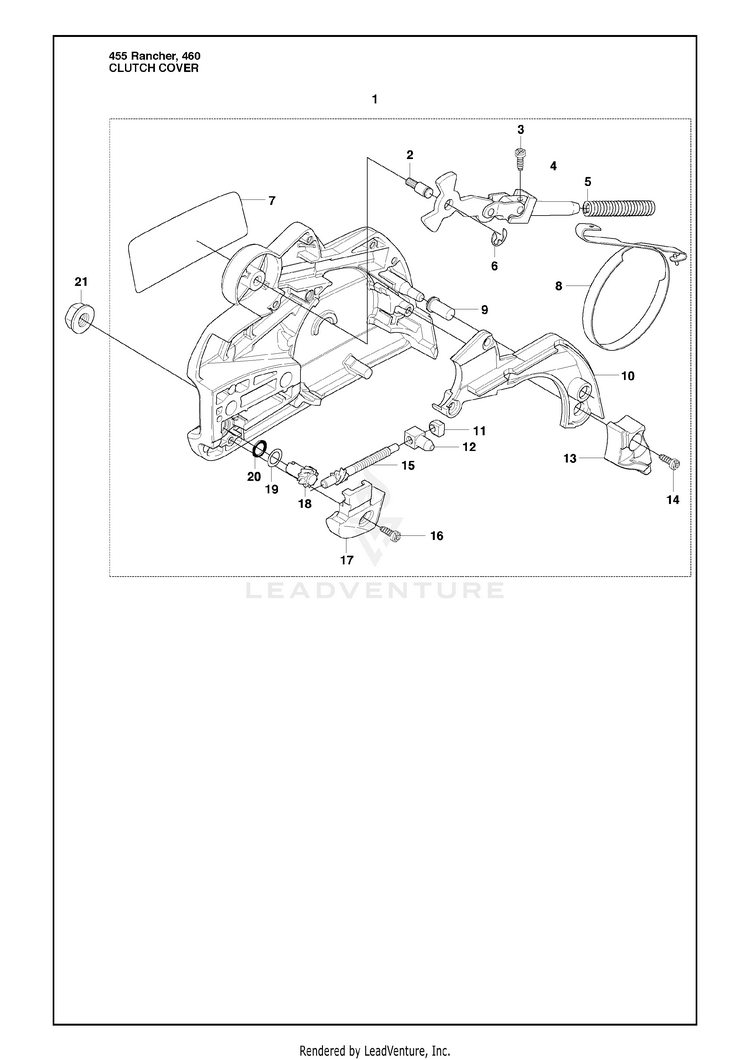

Clutch Cover

...
...
1
CLUTCH COVER 455/465 HUS-546354301
...
2
PIN HUS-503892901
...
3
SCREW HUS-503217010
...
4
JOINT HUS-503890802
...
5
SPRING HUS-503465901
...
6
E-RING 4 HUS-735310820
...
7
DECAL, CLUTCH COVER HUS-537298601
...
8
BRAKE BAND HUS-537043001
...
9
SLEEVE HUS-503855201
...
10
COVER HUS-537108002
...
11
SLEEVE HUS-537017401
...
12
PAWL HUS-537286601
...
13
PROTECTOR HUS-537089001
...
14
SCREW HUS-503217010
...
15
CHAIN TENSIONER KIT HUS-575260404
...
16
SCREW HUS-503217010
...
17
COVER HUS-537286401
...
18
WORM WHEEL HUS-537079402
...
19
WASHER HUS-503230063
...
20
O-RING HUS-740480702
...
21
NUT M8 FLANGE HUS-503220001
