Husqvarna 460 (2009-10) Chain Saw

Model: 460 (2009-10)

Back To Assemblies

Save Part Not Listed?
product name

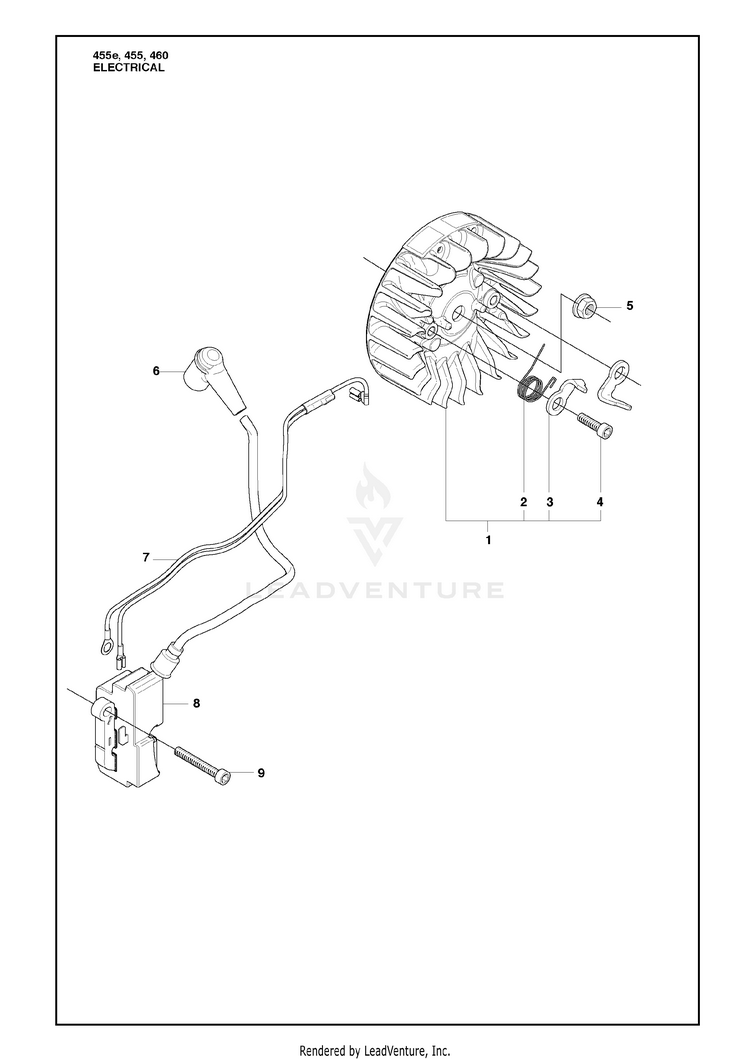

Electrical

...
...
1
FLYWHEEL HUS-537292701
...
2
SPRING HUS-529271101
...
3
PAWL HUS-537245601
...
4
SCREW HUS-501819903
...
5
NUT W/ WASHER HUS-503220401
...
6
SPARK PLUG CONN. KIT HUS-501485402
...
7
CABLE ASSY HUS-537272701
...
8
IGNITION MODULE HUS-544047001
...
9
SCREW HUS-503215525
