Husqvarna 460 (2009-10) Chain Saw

Model: 460 (2009-10)

Back To Assemblies

Save Part Not Listed?
product name

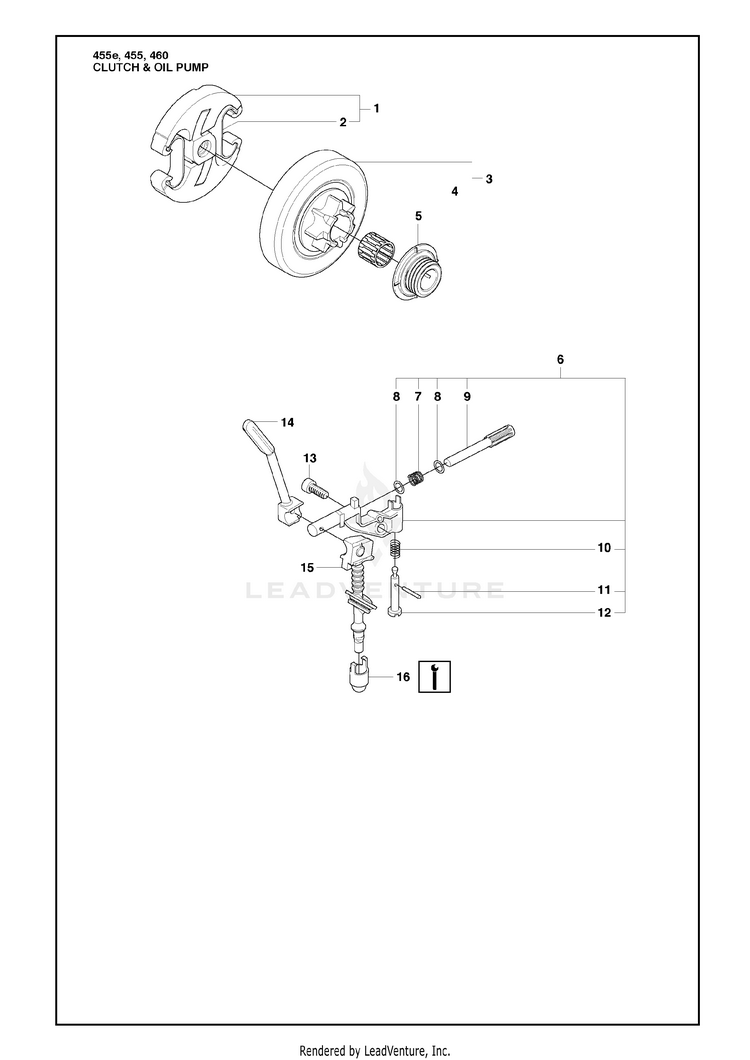

Clutch & Oil Pump

...
...
1
CLUTCH HUS-537110503
...
2
SPRING HUS-537359101
...
3
CLUTCH DRUM .325"x7 SPUR HUS-537291702
...
3
CLUTCH DRUM 3/8"x7 SPUR HUS-537291604
...
4
NEEDLE BEARING 12.7X15.88X14 HUS-599531501
...
5
Gears HUS-598718301
...
6
OIL PUMP ASSY HUS-544180104
...
7
SPRING HUS-503891601
...
8
WASHER HUS-503230060
...
9
PUMP PISTON HUS-537069302
...
10
SPRING HUS-503891501
...
11
PIN HUS-721116430
...
12
ADJUSTER HUS-537027101
...
13
SCREW HUS-503217416
...
14
OIL HOSE HUS-537261501
...
15
OIL HOSE HUS-585514001
...
16
OIL SCREEN HUS-510044301
