Husqvarna 460 (2006-06) Chain Saw

Model: 460 (2006-06)

Back To Assemblies

Save Part Not Listed?
product name

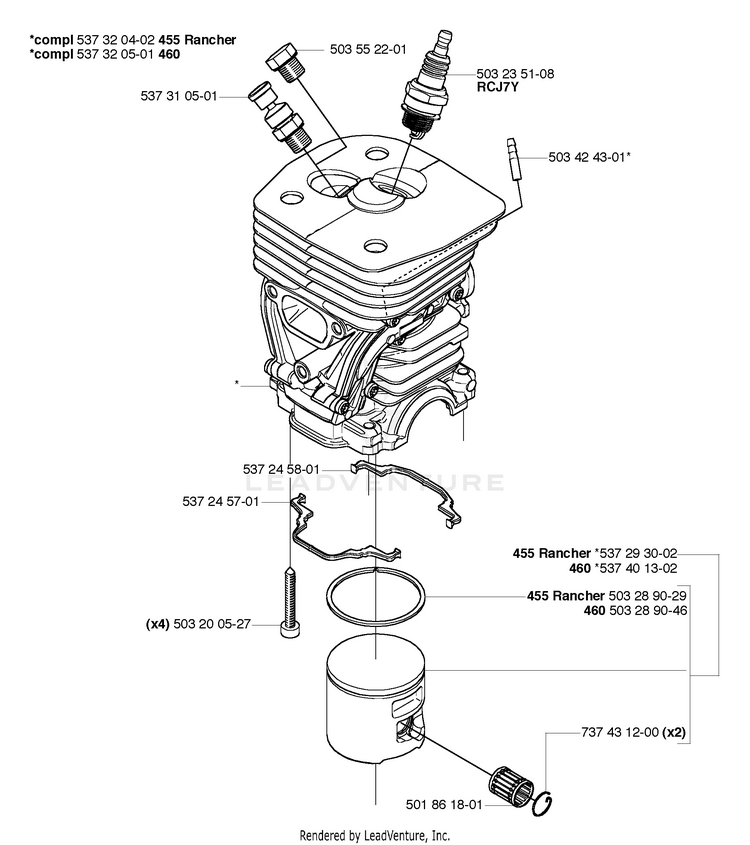

Piston / Cylinder

...
...
501861801
SUPPORT BUSHING HUS-501861801
...
503200527
SCREW HUS-503200527
...
503235108
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
503289029
PISTON RING HUS-503289050
...
503289046
PISTON RING HUS-537401501
...
503424301
FITTING HUS-503424301
...
503552201
CYLINDER PLUG HUS-503552201
...
537245701
GASKET HUS-537245701
...
537245801
GASKET HUS-537245801
...
537293002
PISTON ASSY HUS-537293004
...
537310501
VALVE HUS-585236301
...
537320402
CYLINDER HUS-537320402
...
537320501
CYLINDER HUS-537320501
...
537401302
PISTON HUS-537401302
...
737431200
WRIST PIN CLIP HUS-737431200
