Husqvarna 450 e (2007-09) Chain Saw

Model: 450 e (2007-09)

Back To Assemblies

Save Part Not Listed?
product name

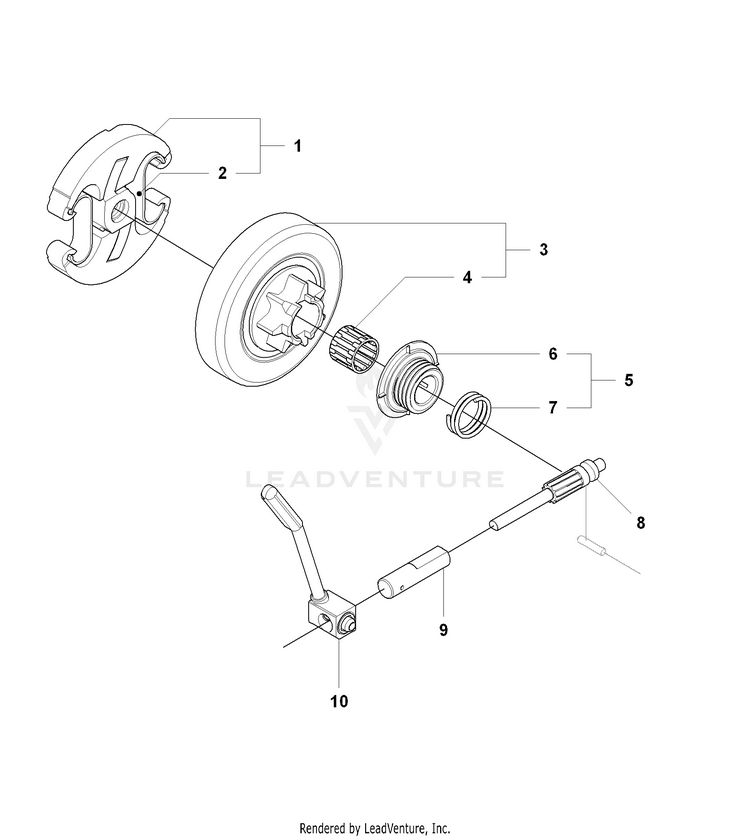

Clutch/Drum/Oiler

...
...
1
CLUTCH HUS-537110503
...
2
SPRING HUS-537359101
...
3
CLUTCH DRUM HUS-578097901
...
4
NEEDLE BEARING 12.7X15.88X14 HUS-599531501
...
5
GEAR WHEEL OIL PUMP HUS-503931801
...
6
HUS-503931901
...
7
HUS-503932001
...
8
PISTON PUMP HUS-540057901
...
9
PUMP CYLINDER HUS-537154801
...
10
HOSES HUS-544084202
Schematic Image Zoomed
