Husqvarna 450 e (2007-03) Chain Saw

Model: 450 e (2007-03)

Back To Assemblies

Save Part Not Listed?
product name

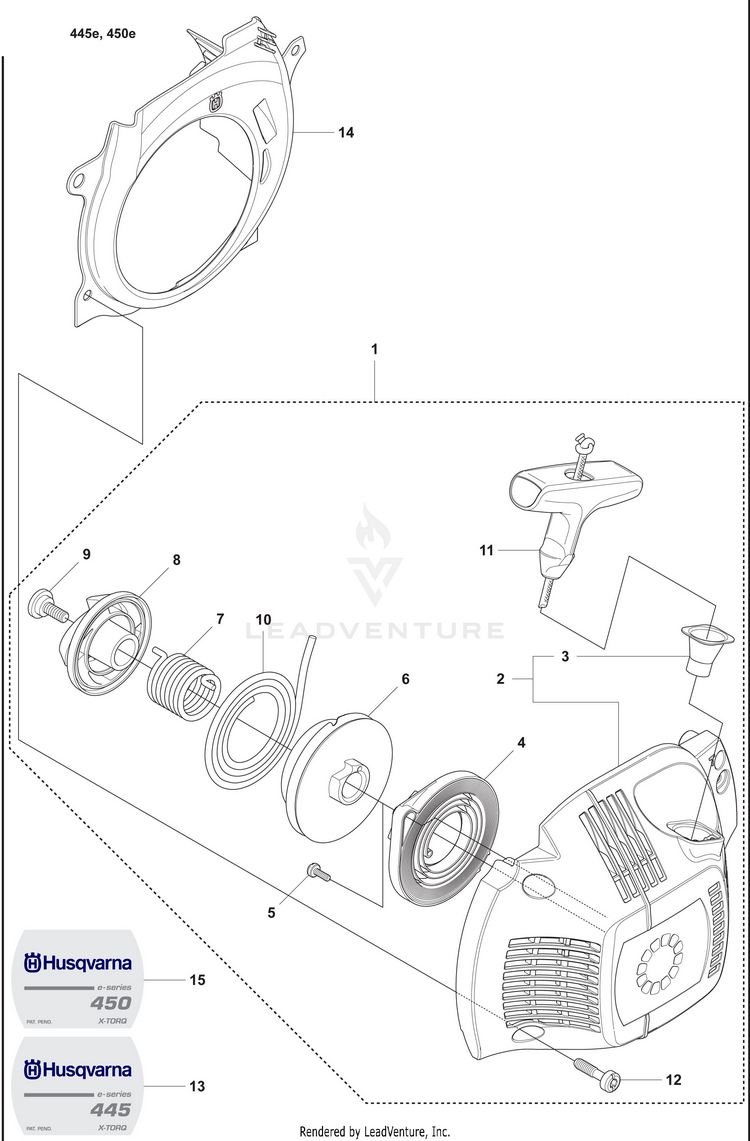

Starter - Spring Assist

...
...
1
STARTER ASSY HUS-544158502
...
2
STARTER HOUSING HUS-544158401
...
3
SLEEVE HUS-537283201
...
4
RETURN SPRING HUS-537241701
...
5
SCREW HUS-503212810
...
6
STARTER PULLEY HUS-537423201
...
7
SPRING HUS-537423401
...
8
DRIVER HUS-537423301
...
9
SCREW HUS-537426601
...
10
STARTER ROPE HUS-505305125
...
11
HANDLE HUS-537232501
...
12
SCREW HUS-503217321
...
13
LABEL HUS-544377101
...
14
COOLING AIR CONDUCTOR HUS-544081501
...
15
LABEL HUS-544377102
