Husqvarna 450 II Chain Saw

Model: 450 II

Back To Assemblies

Save Part Not Listed?
product name

CYLINDER PISTON

...
...
2
PISTON ASSY HUS-544088905
...
3
PISTON RING HUS-544088701
...
9
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
10
SUPPORT HUS-540057301
...
7
GASKET HUS-544109201
...
4
CIRCLIP HUS-544211301
...
1
CYLINDER HUS-544119803
...
11
GASKET KIT Set of Gaskets HUS-544972001
...
5
SUPPORT BUSHING HUS-503256302
...
8
SCREW HUS-503200527
...
6
GASKET HUS-544108701

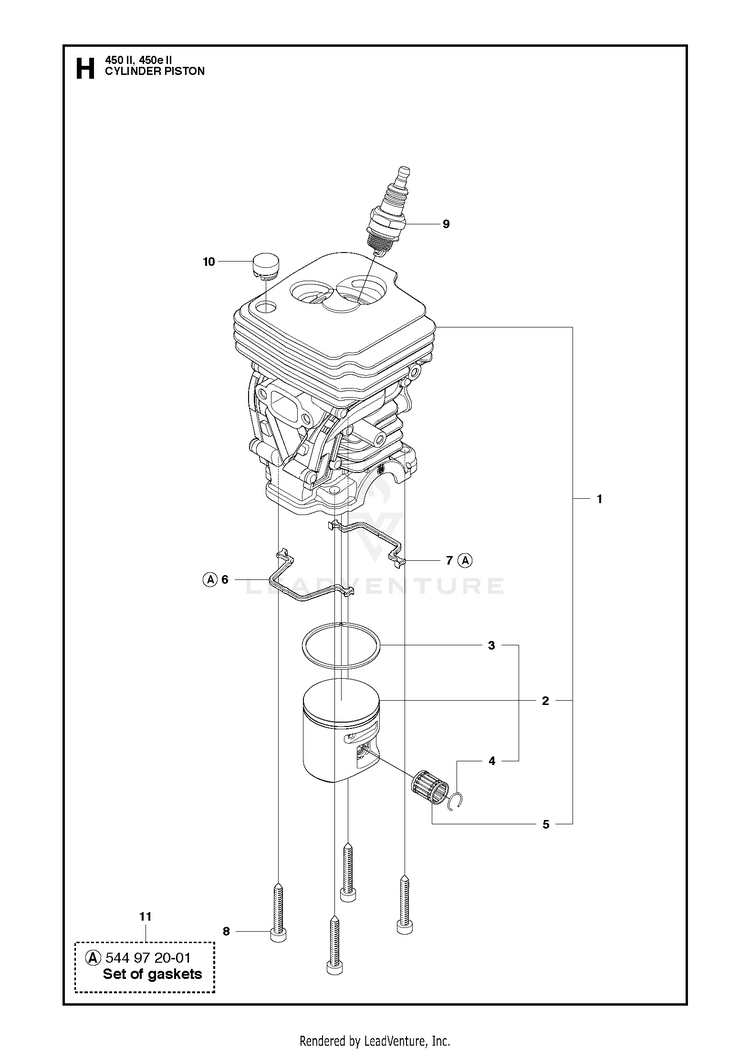

Schematic Image Zoomed
