Husqvarna 450 II Chain Saw

Model: 450 II

Back To Assemblies

Save Part Not Listed?
product name

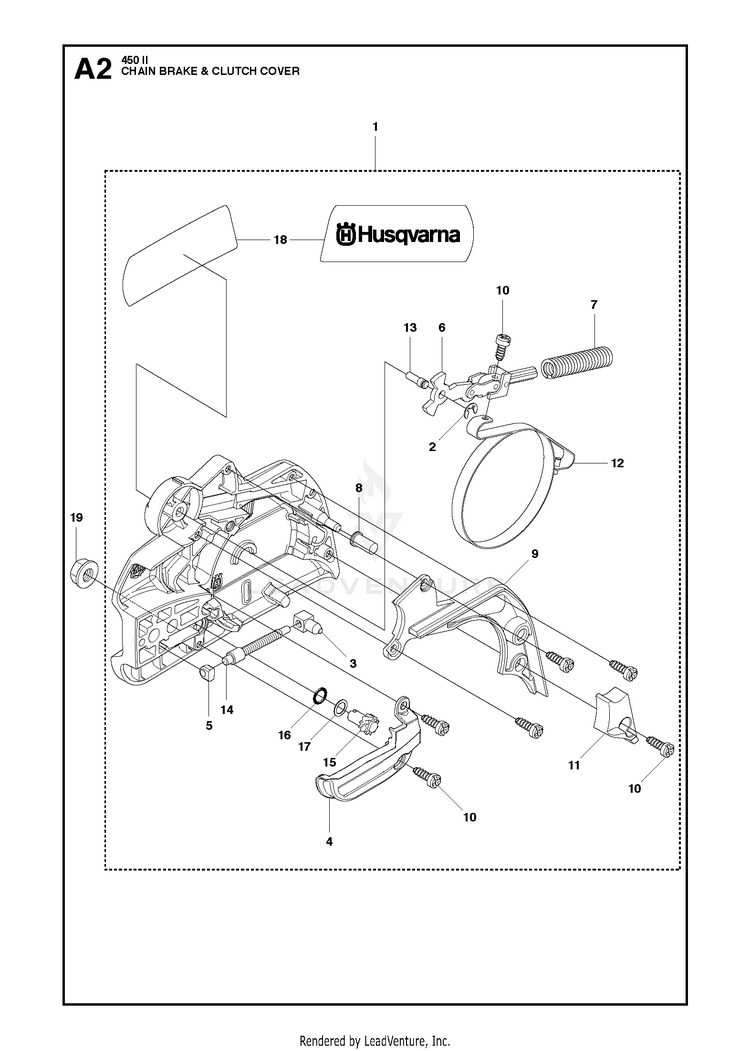

CHAIN BRAKE & CLUTCH COVER 2

...
...
16
O-RING HUS-740480702
...
14
SCREW HUS-537397001
...
8
SLEEVE HUS-503855201
...
5
SLEEVE HUS-537017401
...
18
LABEL 400 SERIES HUS-544376801
...
6
JOINT HUS-503890802
...
4
CHAIN GUIDE HUS-540063301
...
7
SPRING HUS-503465901
...
3
PAWL HUS-537286601
...
1
CLUTCH COVER ASSY STANDARD GR HUS-536329403
...
9
COVER, CHAIN BRAKE HUS-544082901
...
19
NEEDS DESCRIPTION 30 pcs, plastic bag of 503220001 HUS-503220010
...
11
WEAR GUARD, CHAIN HUS-544083001
...
17
WASHER HUS-503230063
...
12
BRAKE BAND HUS-537043001
...
19
NUT M8 FLANGE HUS-503220001
...
10
SCREW HUS-526221801
...
15
WORM WHEEL HUS-537079402
...
13
PIN HUS-503892901
...
2
E-RING 4 HUS-735310820
