Husqvarna 450 E (2011-07) Chain Saw

Model: 450 E (2011-07)

Back To Assemblies

Save Part Not Listed?
product name

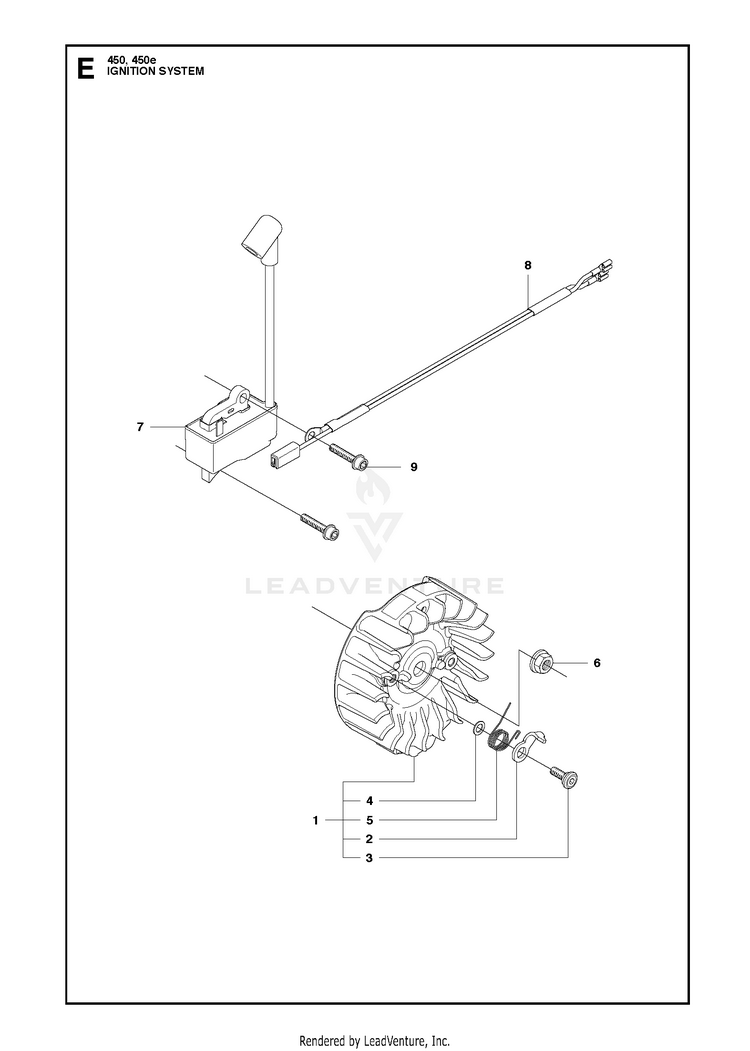

IGNITION SYSTEM

...
...
1
FLYWHEEL ASSY HUS-544111801
...
2
PAWL . 1 HUS-537245601
...
3
SCREW . 1 HUS-501819903
...
4
WASHER . 1 HUS-503230042
...
5
SPRING . 1 HUS-529271101
...
6
NUT W/ WASHER HUS-503220401
...
7
IGNITION MODULE WALBRO MBU HUS-573935702
...
8
WIRING ASSY HUS-510101501
...
9
SCREW HUS-503200220
