product name

Husqvarna 450 Chain Saw

Model: 450

Back To Assemblies

Save Part Not Listed?
product name

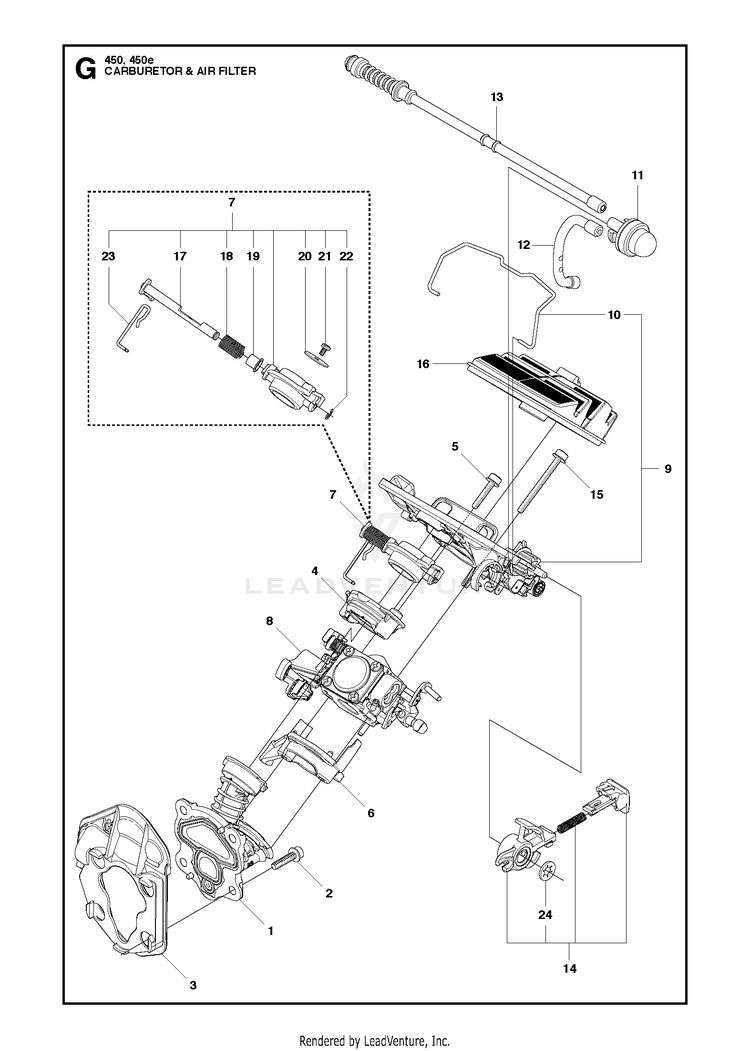

CARBURETOR & AIR FILTER

...
...
6
FLANGE HUS-544084101
...
2
SCREW HUS-503200216
...
9
FILTER HOLDER ASSY HUS-505514701
...
22
CLIP HUS-537385201
...
4
FLANGE HUS-544084001
...
14
CONTROL HUS-544359902
...
20
VALVE HUS-502081201
...
1
INLET PIPE ASSY HUS-544082301
...
8
CARBURETOR C1M-EL37B HUS-531215601
...
3
INTERMEDIATE WALL HUS-544083801
...
16
AIR FILTER - NYLON (80) µ 80 HUS-544080801
...
7
THROTTLE HUS-544148201
...
21
SCREW HUS-503481801
...
12
FUEL HOSE, PURGE suction hose HUS-534138001
...
11
AIR PURGE BUBBLE air purge HUS-503936601
...
15
SCREW HUS-503210750
...
23
ROD HUS-502080901
...
18
SPRING HUS-502081101
...
24
LOCK WASHER HUS-735583000
...
16
AIR FILTER - FELT Felt HUS-544080803
...
13
RETURN HOSE return hose HUS-577535101
...
10
SHACKLE HUS-544231401
...
17
SHAFT ASSY HUS-502081001
...
16
AIR FILTER - NYLON (44) µ 44 HUS-544080802
...
19
COLLAR HUS-502080801
...
5
SCREW HUS-503210725
