Husqvarna 450 Chain Saw

Model: 450

Back To Assemblies

Save Part Not Listed?
product name

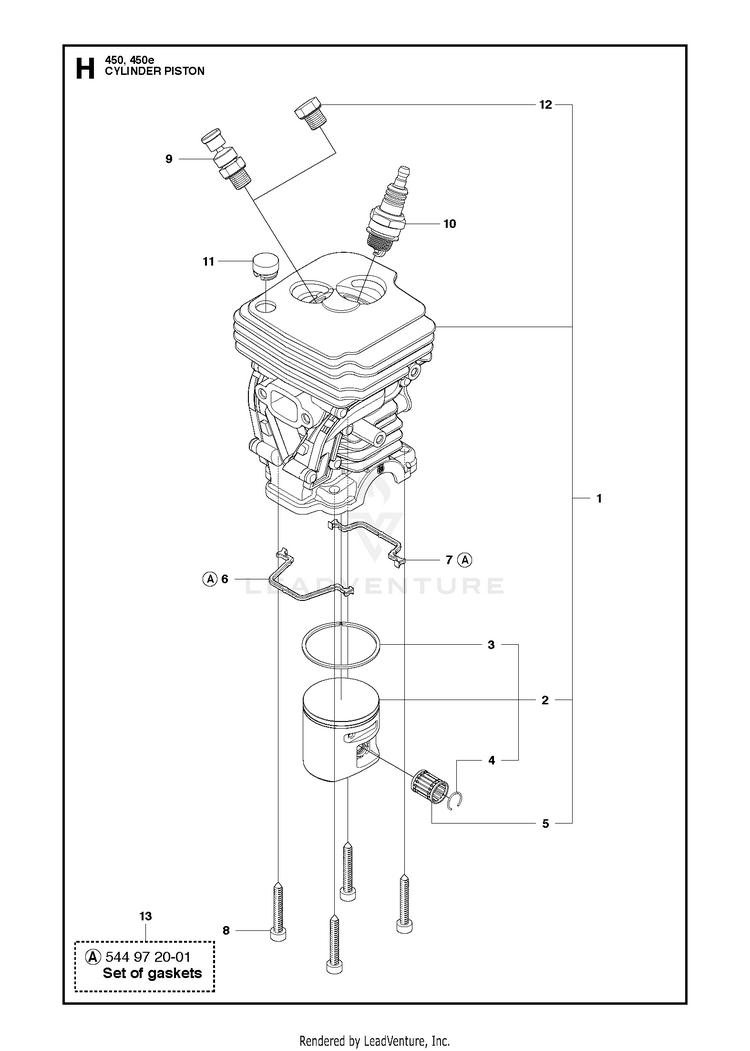

CYLINDER PISTON

...
...
1
CYLINDER HUS-544119802
...
9
DECOMPRESSION VALVE HUS-544870701
...
10
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
4
CIRCLIP HUS-544211301
...
3
PISTON RING HUS-544088701
...
13
GASKET KIT Set of Gaskets HUS-544972001
...
7
GASKET HUS-544109201
...
8
SCREW HUS-503200527
...
6
GASKET HUS-544108701
...
2
PISTON ASSY HUS-544088905
...
5
SUPPORT BUSHING HUS-501451601
...
12
CYLINDER PLUG HUS-503552201
...
11
SUPPORT HUS-540057301
Schematic Image Zoomed
