product name

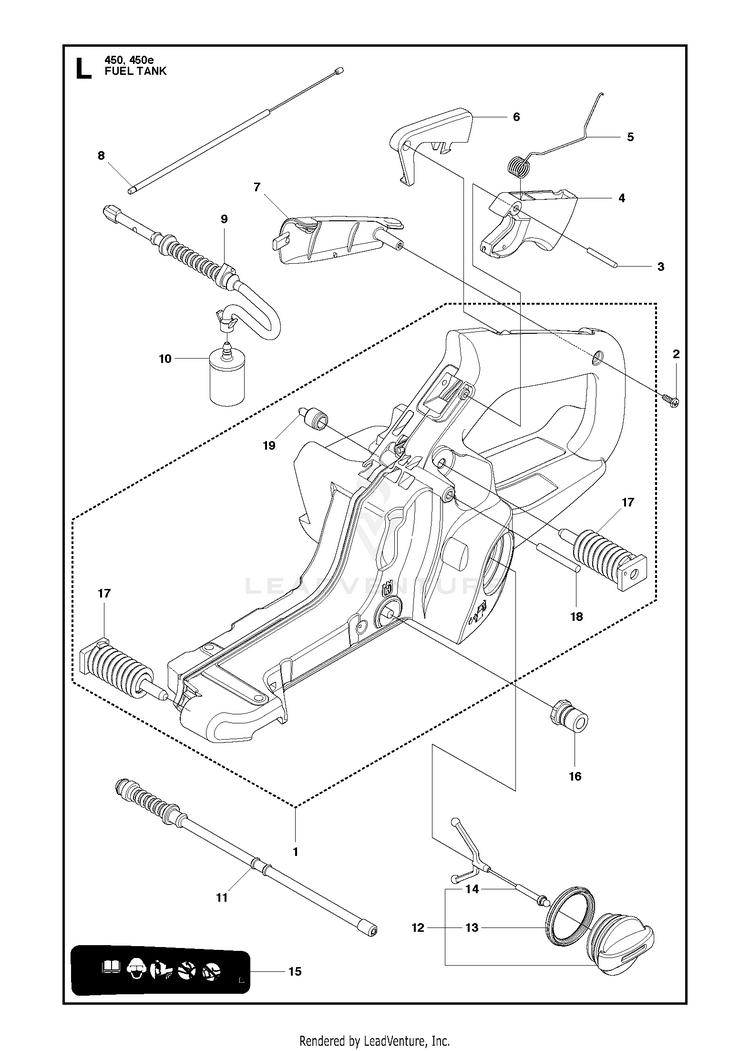

Husqvarna 450 Chain Saw

Model: 450

Back To Assemblies

Save Part Not Listed?
product name

FUEL TANK

...
...
8
THROTTLE CABLE ASSY HUS-504098801
...
2
SCREW HUS-503212810
...
16
LATERAL SUPPORT HUS-501007601
...
13
SEALING HUS-589241101
...
9
FUEL HOSE HUS-544128604
...
7
NEEDS DESCRIPTION HUS-531246501
...
17
ANTI VIBRATIONS ELEMENT HUS-544101201
...
18
GROOVED PIN HUS-721126339
...
7
NEEDS DESCRIPTION GREY SOFT HUS-531246501
...
5
SPRING HUS-544099901
...
15
LABEL HUS-544375001
...
12
ASSY TANK CAP GREY HUS-544111203
...
3
PIN HUS-720182520
...
19
FUEL TANK VENT HUS-501152901
...
11
RETURN HOSE HUS-577535101
...
4
THROTTLE TRIGGER HUS-544099701
...
14
TANK LOCK HUS-503578901
...
6
THROTTLE LOCKOUT HUS-544099801
...
1
FUEL TANK ASSY HUS-537437906
...
10
KIT FUEL FILTER HUS-591375401
