Husqvarna 445 e (2007-09) Chain Saw

Model: 445 e (2007-09)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

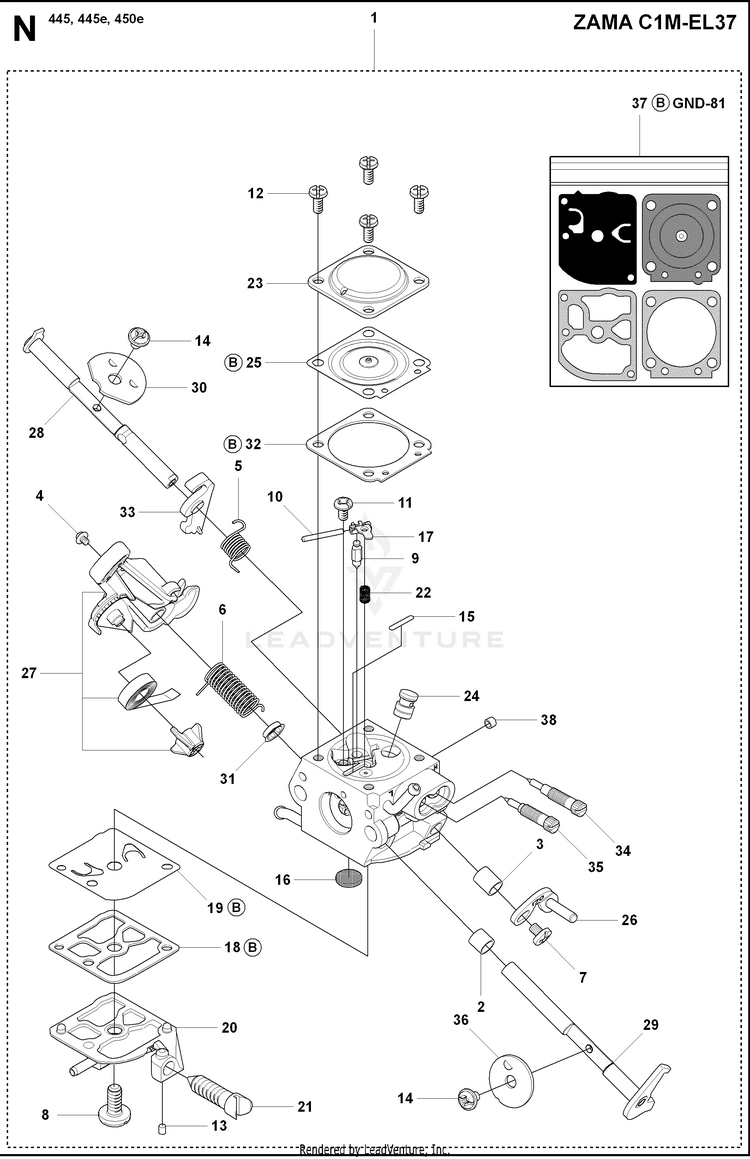

Carburator Parts

...
...
1
CARBURETOR KIT (CARB & HOSE) HUS-505453601
...
2
COLLAR HUS-502078201
...
3
COLLAR HUS-502078301
...
4
SCREW HUS-502078401
...
5
SPRING HUS-502078601
...
6
SPRING HUS-502078701
...
7
SCREW HUS-503479001
...
8
SCREW HUS-503479601
...
9
INLET NEEDLE HUS-503479701
...
10
PIN HUS-537020801
...
11
SCREW HUS-503480101
...
12
SCREW HUS-503480501
...
13
PLUG HUS-503481101
...
14
SCREW HUS-503481801
...
15
PLUG HUS-503535601
...
16
STRAINER HUS-503535701
...
17
LEVER HUS-503665901
...
18
GASKET HUS-537020101
...
19
PUMP DIAPHRAGM HUS-537383101
...
20
COVER HUS-502078901
...
21
SCREW HUS-537383301
...
22
SPRING HUS-537383401
...
23
COVER HUS-537383701
...
24
JET HUS-544237701
...
25
DIAPHRAGM HUS-502079001
...
26
LEVER HUS-502079101
...
27
THROTTLE LEVER HUS-505101701
...
28
SHAFT ASSY HUS-502079401
...
29
SHAFT ASSY HUS-502079501
...
30
CHOKE VALVE HUS-502247701
...
31
COLLAR HUS-502079801
...
32
GASKET HUS-537383601
...
33
LEVER HUS-502081701
...
34
SCREW HUS-502079901
...
35
SCREW HUS-502080001
...
36
VALVE HUS-502080101
...
37
GASKET KIT HUS-502080201
...
38
PLUG HUS-544119501
