Husqvarna 445 e (2007-03) Chain Saw

Model: 445 e (2007-03)

Back To Assemblies

Save Part Not Listed?
product name

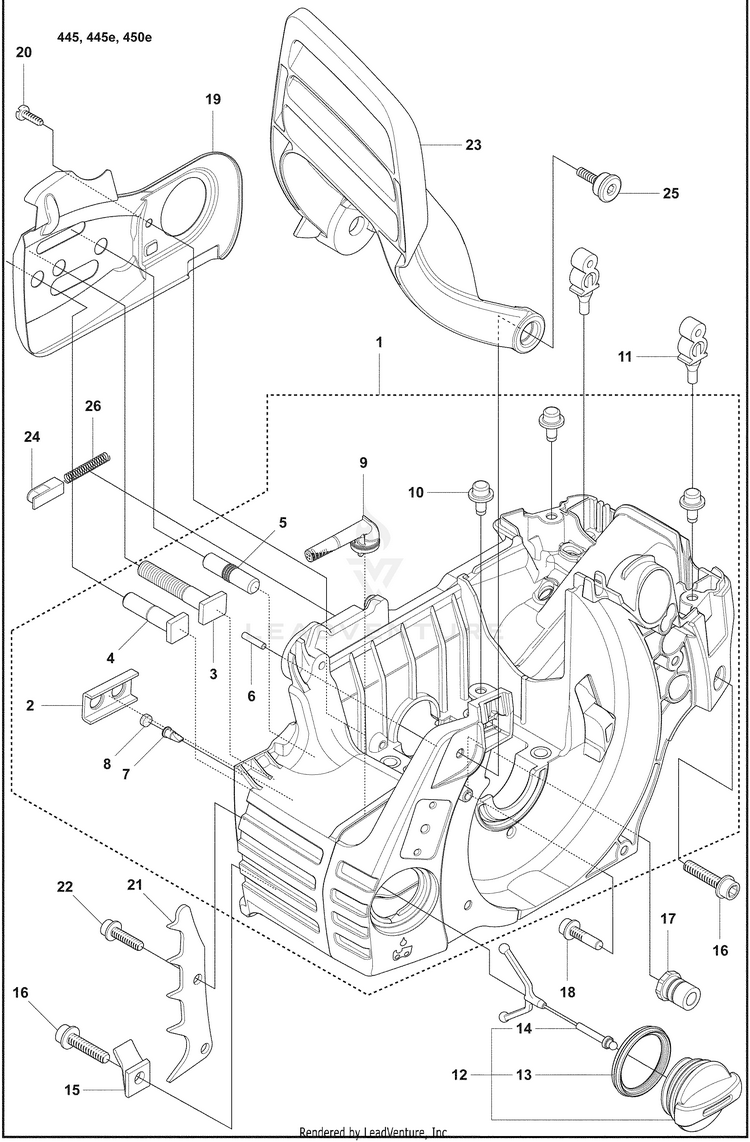

Crankcase / Brake Handle

...
...
1
CRANKCASE HUS-537438201
...
2
STIFFENING PLATE HUS-503875802
...
3
BAR BOLT HUS-503875402
...
4
BAR BOLT HUS-537334601
...
5
BAR BOLT HUS-544036401
...
6
PIN HUS-503240905
...
7
VALVE-CHECK (DUCKBILL) HUS-530026119
...
8
SINTERED BRONZE FILTER HUS-537403502
...
9
OIL SCREEN HUS-544083301
...
10
GUIDE PEN HUS-544331601
...
11
DAMPNER HUS-597909701
...
12
ASSY TANK CAP GREY HUS-544111203
...
13
SEALING HUS-589241101
...
14
TANK LOCK HUS-503578901
...
15
CHAIN CATCHER HUS-503886301
...
16
SCREW HUS-503218876
...
17
LATERAL SUPPORT HUS-501007601
...
18
SCREW IHSCFT HUS-503215103
...
19
CHAIN GUIDE PLATE HUS-544094001
...
20
SCREW HUS-503217010
...
21
SPIKE HUS-503905901
...
22
SCREW HUS-503217520
...
23
HAND GUARD HUS-505422701
...
24
CATCH HUS-503892401
...
25
SCREW HUS-503893001
...
26
LOCK SPRING HUS-503436501
Schematic Image Zoomed
