Husqvarna 445 E Chain Saw

Model: 445 E

Back To Assemblies

Save Part Not Listed?
product name

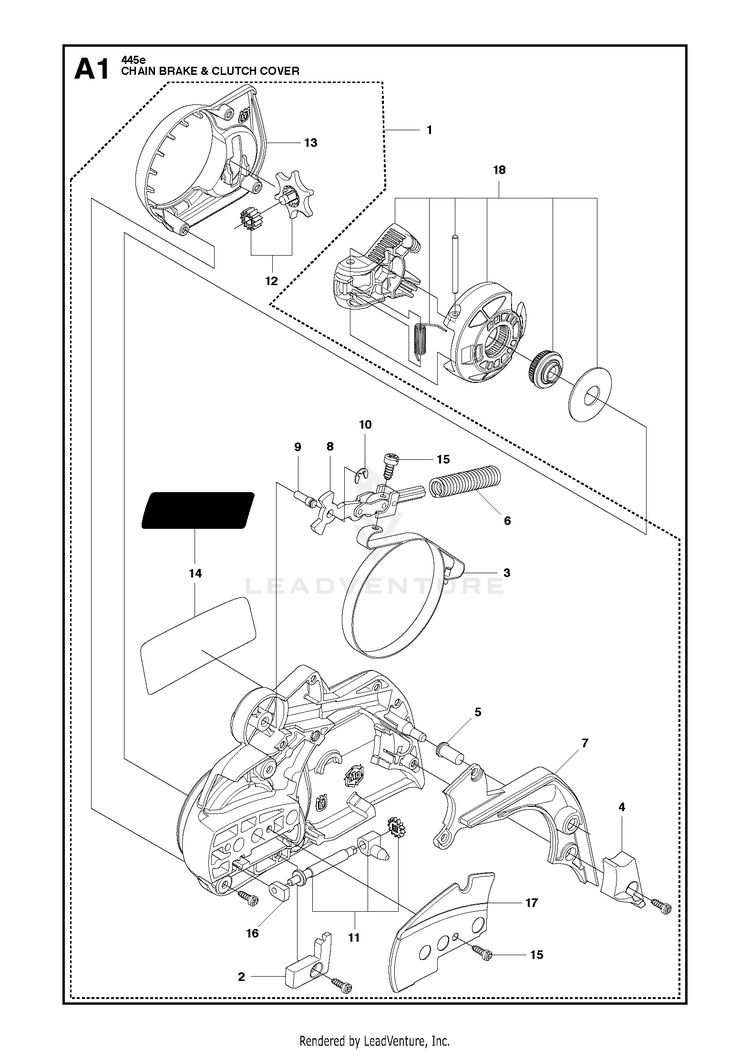

CHAIN BRAKE & CLUTCH COVER

...
...
9
PIN HUS-503892901
...
1
Covers HUS-544217205
...
3
BRAKE BAND HUS-537043001
...
11
CHAIN TENSIONER SCREW, COMP. HUS-537392901
...
2
COVER HUS-504542801
...
15
SCREW HUS-503217010
...
10
E-RING 4 HUS-735310820
...
16
BEARING SLEEVE HUS-525354301
...
18
KNOB, COMPLETE HUS-537347801
...
12
CHAIN TENSIONER WHEEL, COMP. HUS-537347201
...
17
PLATE HUS-544250501
...
8
JOINT HUS-503890802
...
5
SLEEVE HUS-503855201
...
14
DECAL, CLUTCH HOUSING HUS-544357501
...
6
SPRING HUS-503465901
...
13
HEAT SHIELD HUS-537392601
...
7
COVER, CHAIN BRAKE HUS-544082901
...
4
WEAR GUARD, CHAIN HUS-544083001
