Husqvarna 445 E (2011-07) Chain Saw

Model: 445 E (2011-07)

Back To Assemblies

Save Part Not Listed?
product name

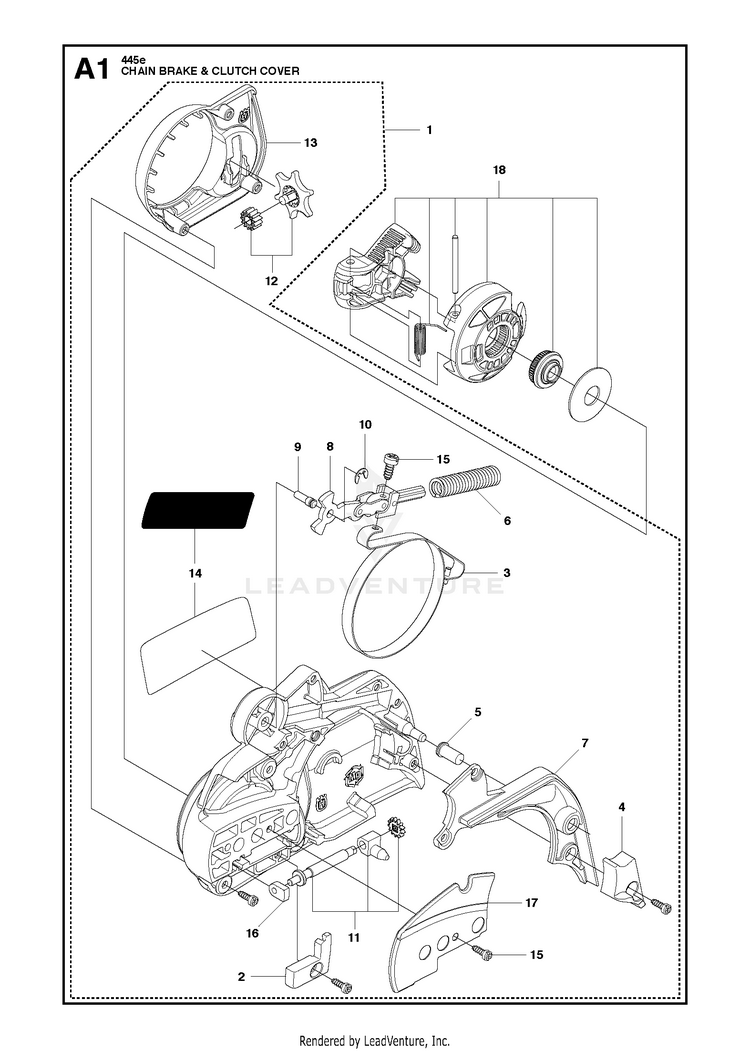

CHAIN BRAKE CLUTCH COVER

...
...
1
Covers HUS-544217205
...
2
COVER . 1 HUS-504542801
...
3
BRAKE BAND . 1 HUS-537043001
...
4
WEAR GUARD, CHAIN . 1 HUS-544083001
...
5
SLEEVE . 1 HUS-503855201
...
6
SPRING . 1 HUS-503465901
...
7
COVER, CHAIN BRAKE . 1 HUS-544082901
...
8
JOINT . 1 HUS-503890802
...
9
PIN . 1 HUS-503892901
...
10
E-RING 4 . 1 HUS-735310820
...
11
CHAIN TENSIONER SCREW, COMP. . 1 HUS-537392901
...
12
CHAIN TENSIONER WHEEL, COMP. . 1 HUS-537347201
...
13
HEAT SHIELD . 1 HUS-537392601
...
14
DECAL, CLUTCH HOUSING . 1 HUS-544357501
...
15
SCREW . 1 HUS-503217010
...
16
BEARING SLEEVE . 1 HUS-525354301
...
17
PLATE . 1 HUS-544250501
...
18
KNOB, COMPLETE HUS-537347801
