Husqvarna 445 E (2011-07) Chain Saw

Model: 445 E (2011-07)

Back To Assemblies

Save Part Not Listed?
product name

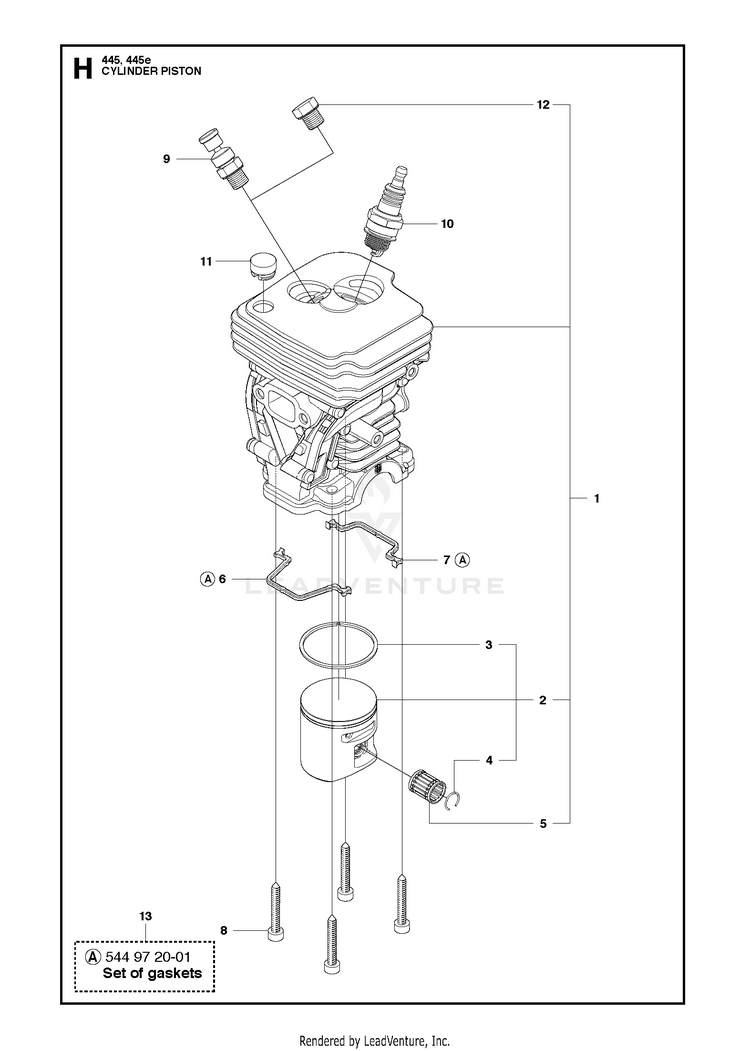

CYLINDER PISTON

...
...
1
CYLINDER HUS-544119902
...
2
PISTON ASSY . 1 HUS-544088405
...
3
PISTON RING . 1 2 HUS-537401101
...
4
CIRCLIP . 1 2 HUS-544211301
...
5
SUPPORT BUSHING . 1 HUS-501451601
...
6
. 13 HUS-525816201
...
7
. 13 HUS-525816301
...
8
SCREW HUS-503200527
...
9
DECOMPRESSION VALVE HUS-544870701
...
10
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
11
SUPPORT HUS-540057301
...
12
CYLINDER PLUG . 1 HUS-503552201
...
13
GASKET KIT Set of Gaskets HUS-544972001
