Husqvarna 440 e (2008-05) Chain Saw

Model: 440 e (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

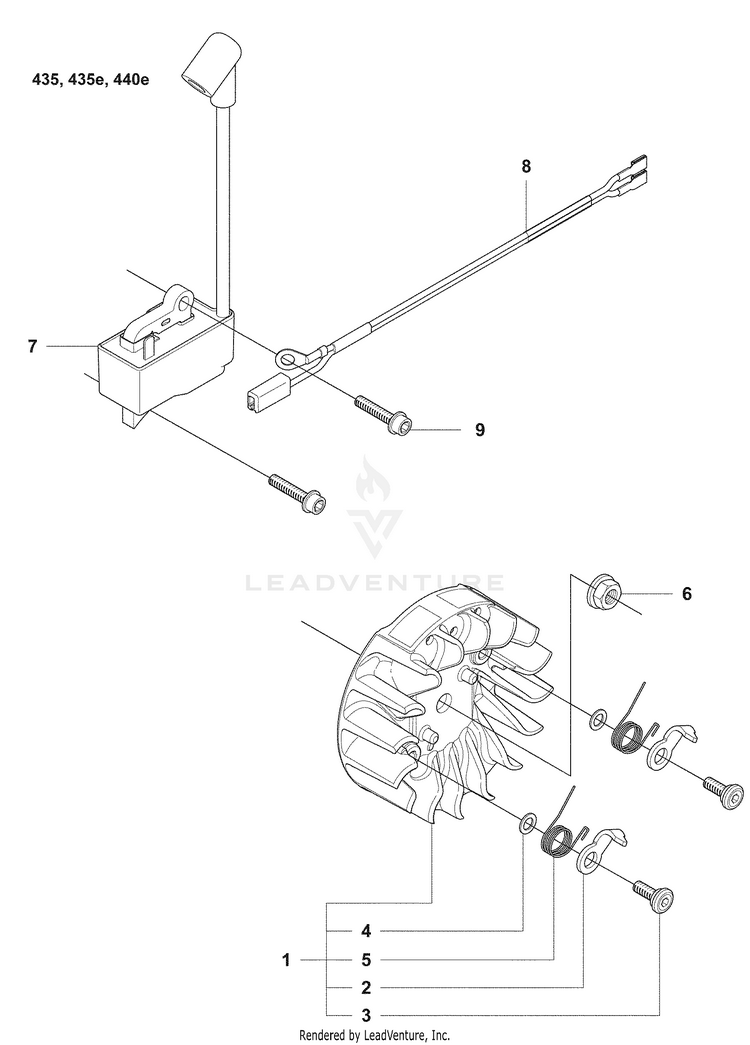

Ignition / Flywheel

...
...
1
FLYWHEEL ASSY Flywheel assy HUS-544874204
...
2
PAWL Starter pawl HUS-537245601
...
3
SCREW Screw HUS-501819903
...
4
WASHER Washer steel HUS-503230042
...
5
SPRING Spring HUS-529271101
...
6
NUT W/ WASHER Nut HUS-503220401
...
7
IGNITION MODULE WALBRO MBU Ignition module HUS-573935702
...
8
WIRING ASSY Wiring assy HUS-544848201
...
9
SCREW Screw IHSCFM HUS-503200220
