Husqvarna 440 e (2008-05) Chain Saw

Model: 440 e (2008-05)

Back To Assemblies

Save Part Not Listed?
product name

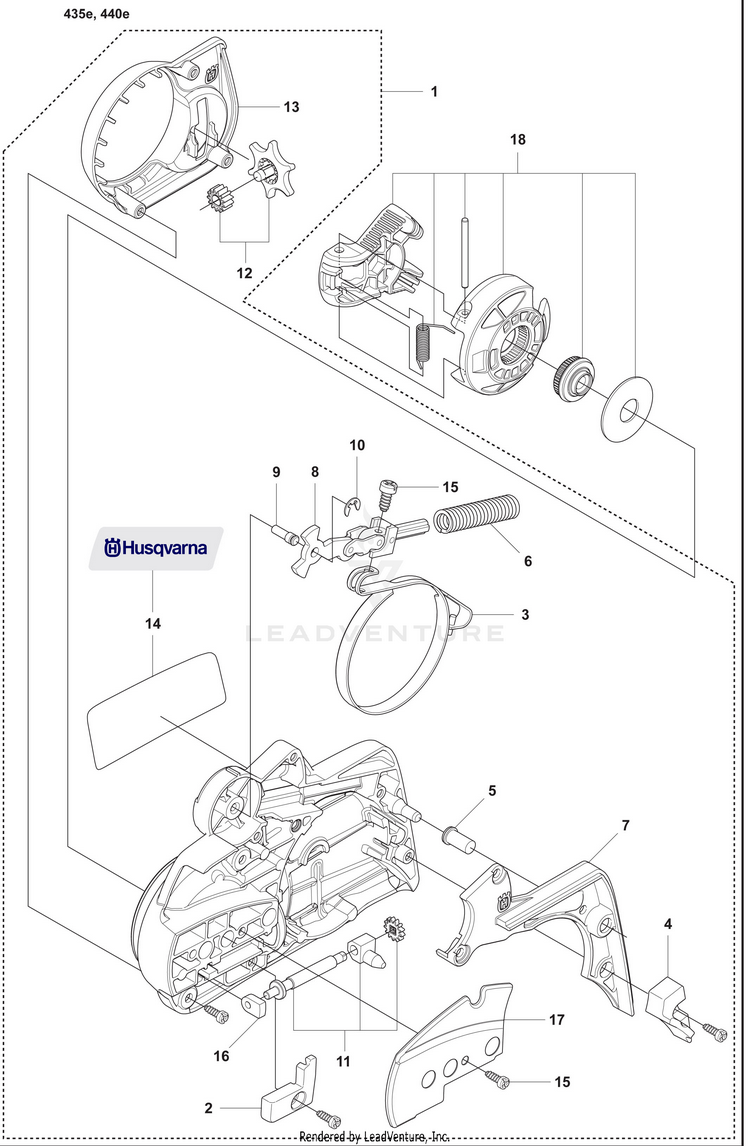

Chainbrake 435e/440e

...
...
1
ASSY CHAIN BRAKE HUSQ ORANGE Clutch cover assy HUS-544194907
...
2
COVER Cover HUS-504542801
...
3
BRAKE BAND ASSY Brake band assy HUS-544306001
...
4
WEAR PROTECTION Wear protection HUS-544253101
...
5
SLEEVE Guide bushing HUS-503855201
...
6
BLADE COVER Brake spring HUS-576207401
...
7
COVER Cover lid HUS-544248501
...
8
JOINT Knee joint HUS-503890802
...
9
PIN Pin knee joint HUS-503892901
...
10
E-RING 4 E-clip HUS-735310820
...
11
CHAIN TENSIONER SCREW, COMP. Chain tension screw HUS-537392901
...
12
CHAIN TENSIONER WHEEL, COMP. Chain tensioner wheel HUS-537347201
...
13
HEAT SHIELD Heat protector HUS-537392601
...
14
DECAL, CLUTCH HOUSING Label HUS-544357501
...
15
SCREW Screw HUS-503217010
...
16
BEARING SLEEVE Bearing sleeve HUS-525354301
...
17
PLATE Wear plate HUS-544250501
...
18
KNOB, COMPLETE Knob HUS-537347801
