product name

Husqvarna 440 E TRIOBRAKE Chain Saw

Model: 440 E TRIOBRAKE

Save
 Part Not Listed?Part Not Listed?
product name

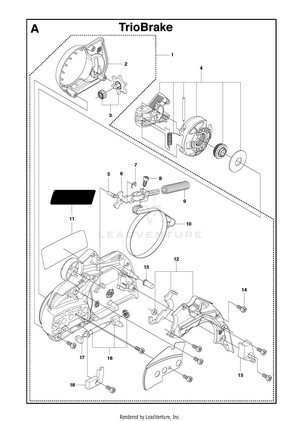

CHAIN BRAKE & CLUTCH COVER

...
...
6
JOINT HUS-503890802
...
17
BEARING SLEEVE HUS-525354301
...
9
BRAKE SPRING HUS-505892601
...
15
WEAR PROTECTION HUS-544253101
...
3
CHAIN TENSIONER WHEEL, COMP. HUS-537347201
...
2
HEAT SHIELD HUS-537392601
...
18
COVER HUS-504542801
...
10
BRAKE BAND ASSY HUS-544306001
...
11
DECAL, CLUTCH HOUSING HUS-544357501
...
7
E-RING 4 HUS-735310820
...
8
SCREW HUS-503217010
...
16
CHAIN TENSIONER SCREW HUS-502493201
...
13
SLEEVE HUS-503855201
...
5
PIN HUS-503892901
...
14
SCREW HUS-503217010
...
4
KNOB, COMPLETE HUS-537347801
...
12
NEEDS DESCRIPTION HUS-502446901
...
1
CLUTCH COVER ASSY HUS-521925901

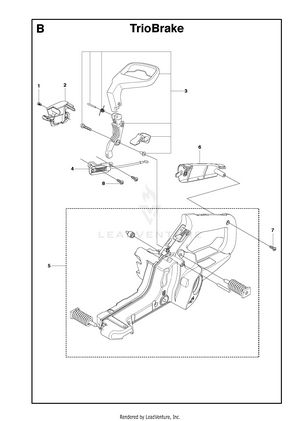

HANDLE & CONTROLS

...
...
8
SCREW HUS-503217072
...
1
SCREW HUS-503217072
...
4
NEEDS DESCRIPTION HUS-521939301
...
6
HANDLE INSERT HUS-502446801
...
7
SCREW HUS-503212810
...
3
NEEDS DESCRIPTION HUS-575551401
...
5
FUEL TANK ASSY HUS-525619101
...
2
COVER LID HUS-502446701
...
...
...
