Husqvarna 439 Chain Saw

Model: 439

Back To Assemblies

Save Part Not Listed?
product name

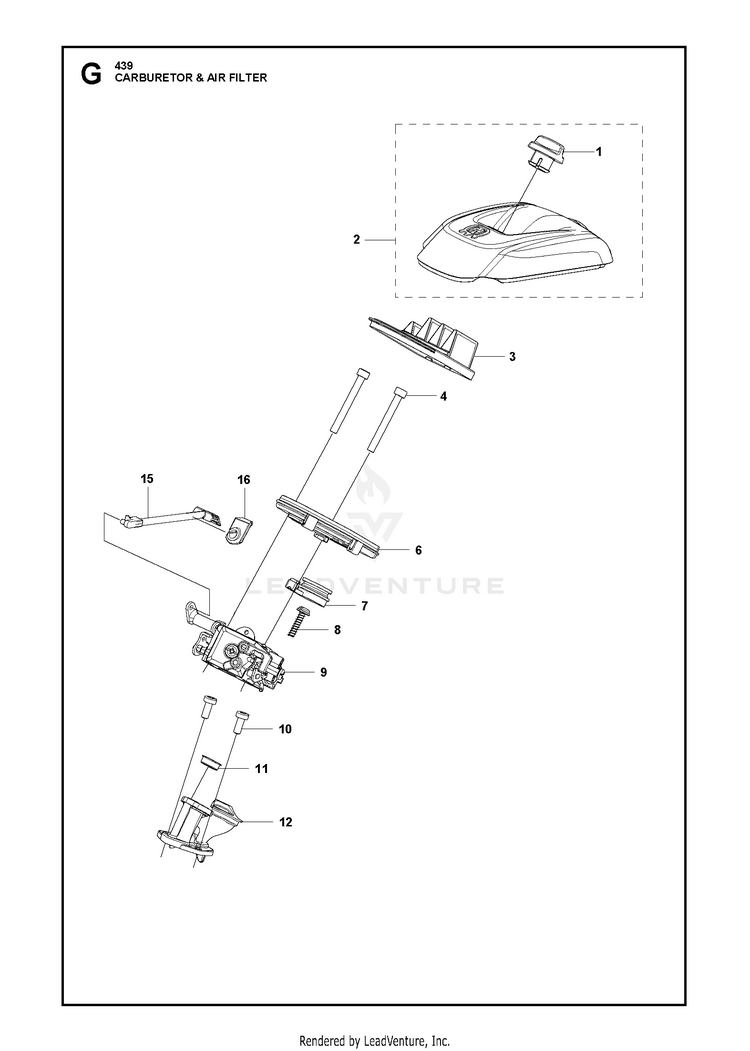

CARBURETOR & AIR FILTER 2

...
...
12
INLET PIPE s/n frpm 20174300651 HUS-587139401
...
2
AIR FILTER COVER ASSY 439 HUS-579312001
...
3
AIR FILTER 439/GZ3500L HUS-579308901
...
15
CHOKE ROD 439 HUS-579308301
...
7
SEAL RPLS 848CE083G2 HUS-527675101
...
1
KNOB XC25 HUS-577433701
...
9
CARBURETTOR 439 For EU/US only HUS-579308001
...
4
SCREW HUS-575725401
...
8
SCREW HUS-521518101
...
16
GROMMET CHOKE 436_ORANGE HUS-579308401
...
10
BOLT HUS-522638501
...
6
AIR FILTER BOTTOM BOTTOM 436/G HUS-579308501
...
9
NEEDS DESCRIPTION For JAPAN only HUS-579588601
...
11
RING HUS-581897801
