product name

Husqvarna 439 Chain Saw

Model: 439

Back To Assemblies

Save Part Not Listed?
product name

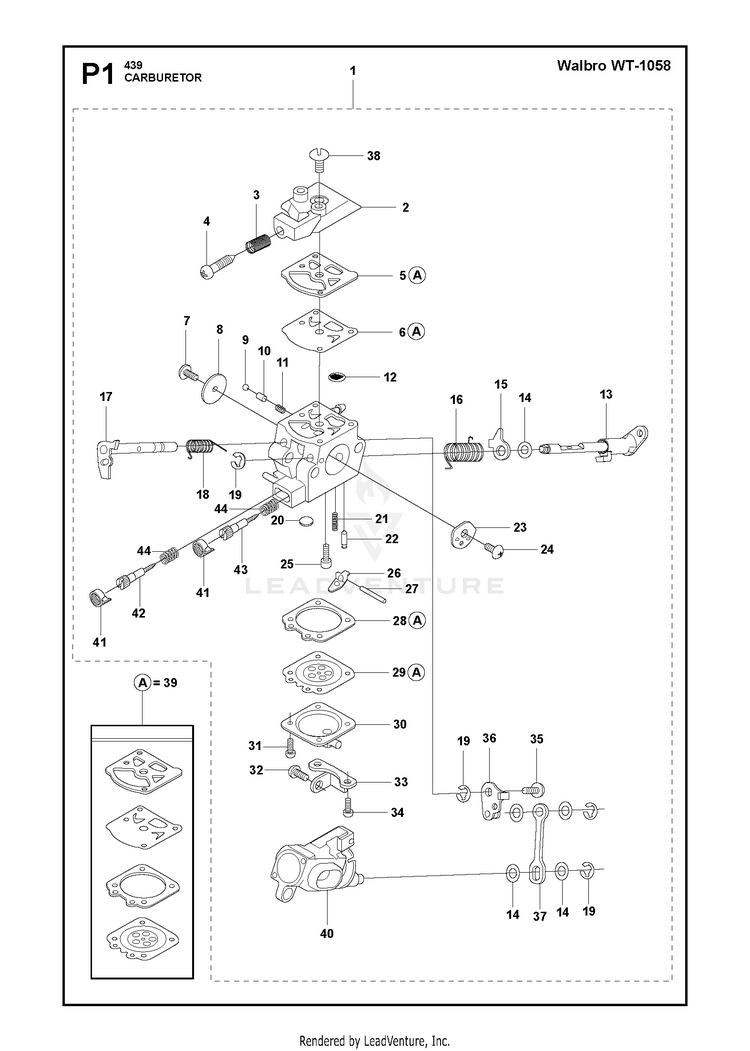

CARBURETOR 4

...
...
1
CARBURETTOR 439 For EU/US only HUS-579308001
...
22
VALVE INLET HUS-521085401
...
43
NEEDLE H HUS-578913101
...
7
SCREW HUS-520759801
...
24
SCREW HUS-520759801
...
3
SPRING HUS-521066301
...
26
LEVER HUS-520977201
...
15
LEVER HUS-521581101
...
35
SCREW HUS-520759801
...
4
SCREW HUS-516778301
...
31
SCREW ASSY HUS-520978801
...
28
GASKET HUS-516972101
...
30
COVER HUS-522646001
...
38
SCREW HUS-520976301
...
23
CHOKE VALVE HUS-516956901
...
8
VALVE HUS-520978601
...
14
WASHER HUS-516524201
...
27
PIN HUS-520977401
...
21
SPRING HUS-516980001
...
16
SPRING HUS-521580101
...
32
SCREW HUS-522646101
...
6
PUMPS HUS-596968101
...
25
SCREW HUS-520977301
...
41
CAP LIMITER HUS-578913001
...
10
PISTON HUS-516935901
...
5
GASKET HUS-520954801
...
40
BODY ASSY AIR VALVE 5-8416 HUS-579236301
...
13
SHAFT ASSY CHOKE 439 HUS-579308201
...
29
DIAPHRAGM HUS-505306801
...
2
COVER HUS-521575601
...
33
BRACKET 167-596 HUS-579236401
...
20
PLUG HUS-516342901
...
9
BALL HUS-516936001
...
37
ROD, LINK HUS-522646401
...
17
SHAFT ASST THRO HUS-522646201
...
36
LINK ASSY THROT 439 HUS-579308101
...
19
E-RING HUS-505056501
...
12
RP_SCREEN (RPLS 331081380) HUS-574012501
...
18
SPRING RETURN HUS-516843901
...
42
NEEDS DESCRIPTION HUS-585660101
...
39
GASKET KIT HUS-585597401
...
44
SPRING HUS-578912801
...
34
SCREW ASSY HUS-522645601
...
11
SPRING HUS-505057901
