Husqvarna 439 Chain Saw

Model: 439

Back To Assemblies

Save Part Not Listed?
product name

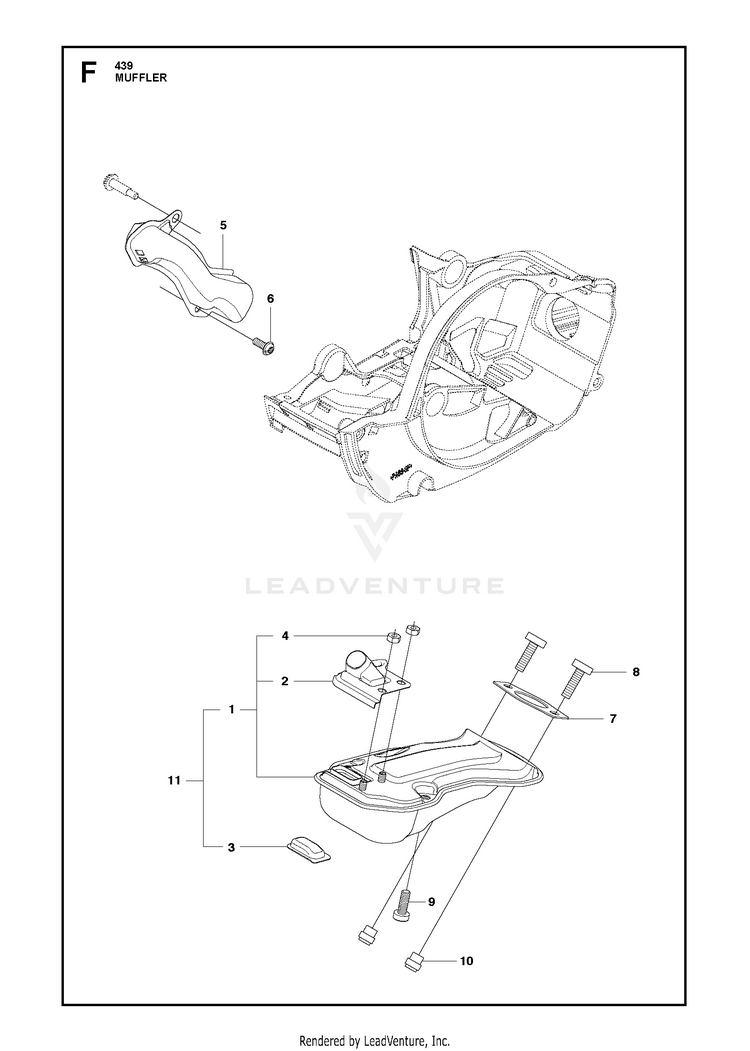

MUFFLER 2

...
...
7
GASKET, MUFFLER Gasket HUS-521792001
...
8
BOLT Bolt HUS-522638801
...
1
MUFFLER ASSY For EU/JAPAN only HUS-585044101
...
5
RP_PIPE, EXHAUST Exhaust pipe HUS-522640901
...
4
NUT Nut HUS-510485801
...
2
GUIDE, MUFFLER Muffler guide HUS-574381401
...
6
RP_SCREW Screw HUS-574005301
...
3
SPARK ARRESTER HUS-527682601
...
9
BOLT Screw HUS-521516201
...
10
NUT Nut HUS-516960901
...
11
MUFFLER For US/CAN only HUS-577742001
