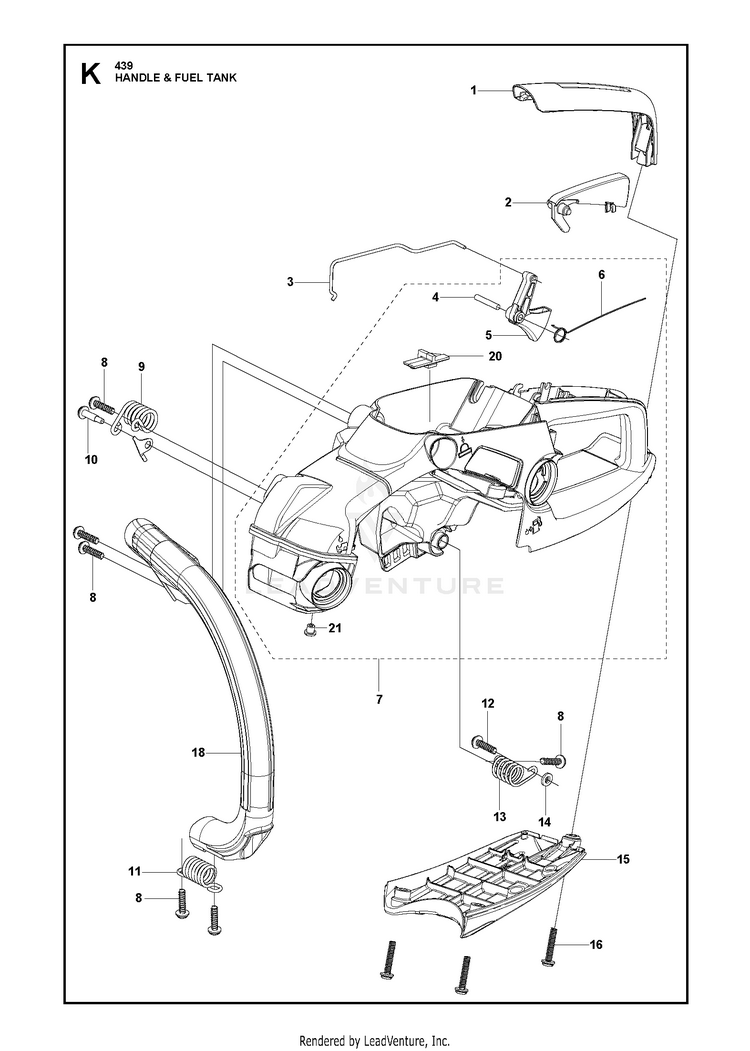

Husqvarna 439 Chain Saw

Model: 439

Back To Assemblies

Save Part Not Listed?
product name

HANDLE

...
...
12
SCREW (RPLS 267132210) HUS-521518001
...
4
PIN 8488B42400 HUS-521522401
...
2
ARM HUS-522017001
...
7
HANDLES HUS-579314304
...
13
SPRING, PTO HUS-522642401
...
6
SPRING HUS-505048001
...
3
THROTTLE ROD 436/GZ3500L HUS-579311501
...
11
SPRING FLYWHEEL SIDE HUS-583832901
...
1
COVER GRIP 439 HUS-579311601
...
15
COVER HANDLE 439 HUS-579311701
...
21
GROMMET HUS-513737401
...
16
SCREW HUS-512848101
...
18
FRONT HANDLE 439 HUS-579312201
...
10
SCREW HUS-581945101
...
8
SCREW HUS-521518101
...
9
SPRING FRONT 439 HUS-579312801
...
5
THROTTLE LEVER HUS-581641801
...
14
SPACER Z114283110 HUS-513192301
...
20
GROMMET R HANDLE HUS-584893701
Schematic Image Zoomed
