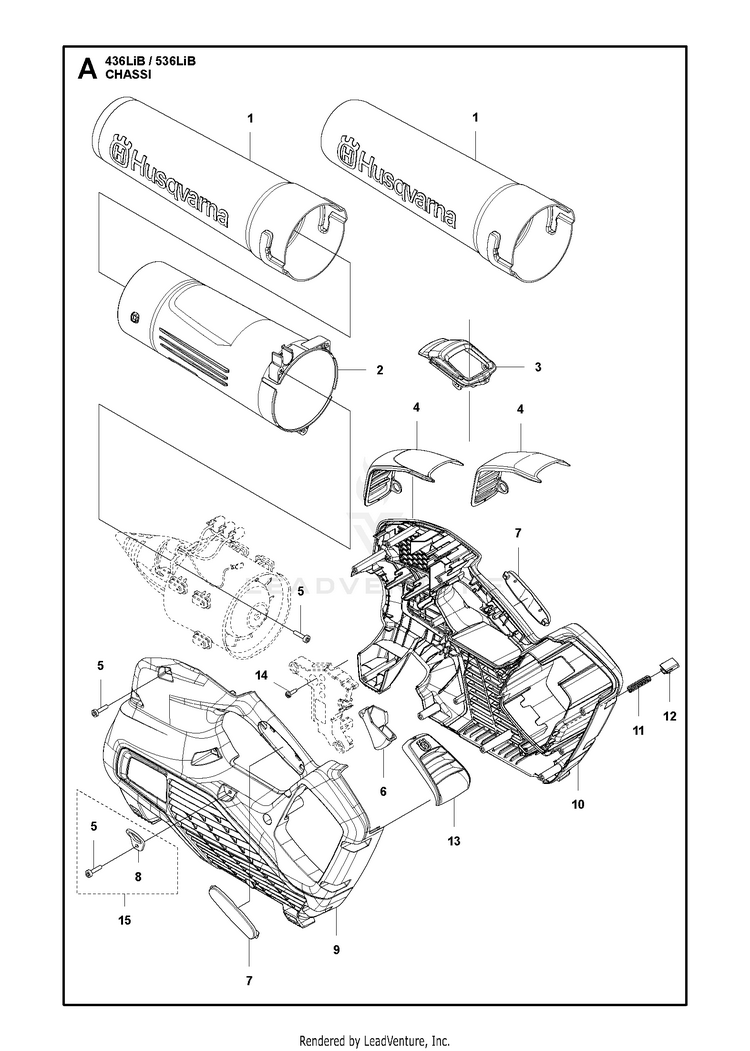

Husqvarna 436LiB Blower

Model: 436LiB

Back To Assemblies

Save Part Not Listed?
product name

TUBE

...
...
5
SCREW ITXSCT PW4.2X18 10.9 ZN 436LiB HUS-580292901
...
14
SCREW HUS-503212813
...
3
KEYPAD FRAME HUS-584213703
...
12
PUSH BUTTON HUS-577996601
...
11
SPRING PUSH OUT HUS-585480001
...
5
SCREW ITXSCT PW4.2X18 10.9 ZN 536LiB HUS-580292901
...
9
HOUSING LEFT HUS-584157402
...
7
HANDLE INSERT GREY HUS-544042003
...
10
HOUSING RIGHT HUS-584157302
...
13
COVER HUS-576901201
...
8
EYELET HUS-586514201
...
4
NEEDS DESCRIPTION 436LiB HUS-584914302
...
6
THROTTLE CONTROL HUS-579564102
...
15
KIT EYELET HUS-588009701
...
1
NOZZLE 436LIB 436LiB HUS-584156802
...
4
COVER 536LiB HUS-584914701
...
2
TUBE FAN OUTLET HUS-584156602
...
1
TUBE ASSY 536LiB HUS-586106301
