Husqvarna 4360-37 (1999 & Before) Tractor

Model: 4360-37 (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

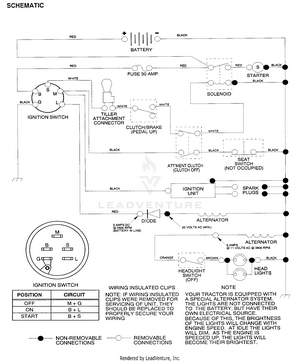

SCHEMATIC

...

No Parts Available for this Schematic

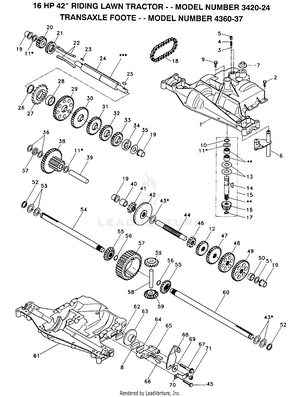

TRANSAXLE

...
...
1
HOUSING UPPER PLN-3865-A
...
2
SCREW PLN-1919
...
3
BALL, DETENT PLN-5112
...
4
SPRING, DETENT PLN-3626
...
5
SCREW, SET PLN-3623
...
6
KIT SHIFTER ASSY PLN-4601
...
7
BOOT, SHIFTER PLN-5024
...
8
PUCK, FRICTION PLN-3907
...
9
SCREW TAPPING WITH SEALER PLN-5131
...
10
RING RETAINING PLN-1099
...
11
ASSY, KIT, SHIM .625 SHAFT PLN-4689
...
12
GEAR SPUR, 15 TEETH PLN-3707
...
13
WASHER, PLAIN .632 X 1.38 X .046 PLN-3876
...
14
KEY WOODRUFF #9 PLN-1374
...
15
ASSY KIT INPUT SHAFT PLN-4171
...
16
PINION BEVEL 14 TEETH PLN-3725
...
17
RING, RETAINING PLN-3624
...
18
CHAIN, 24 PITCHES PLN-3625
...
19
BEARING, FLANGE PLN-1542
...
20
GEAR SPUR, 14 TEETH PLN-3773
...
21
COLLAR CLUTCH PLN-3631
...
22
KEY CLUTCH PLN-5266
...
23
KEY WOODRUFF #3 PLN-1369
...
24
SHAFT INTERMEDIATE PLN-3883
...
25
KEY, WOODRUFF, #61 PLN-1375
...
26
RING, RETAINING PLN-3627
...
27
SPROCKET, 18 TEETH PLN-3830
...
28
SPACER PLN-3841
...
29
GEAR, SPUR, 37 TEETH PLN-3786
...
30
GEAR, SPUR, 35 TEETH PLN-3785
...
31
GEAR, SPUR, 30 TEETH PLN-3867
...
32
GEAR, SPUR, 25 TEETH PLN-3783
...
33
GEAR, SPUR, 22 TEETH PLN-3869
...
34
GEAR, SPUR, 19 TEETH PLN-5202
...
35
WASHER, PLAIN .640 X 1.37 X .061 PLN-3628
...
36
WASHER, PLAIN .632 X 1.00 X .026 PLN-1423
...
37
SPACER .630 X 1.00 X .169 PLN-3422
...
38
ASSY GEAR COMB 12&35 TEETH PLN-4286
...
39
SHAFT, IDLER PLN-3967
...
40
SPACER .635 X .875 X .755 PLN-3901
...
41
SPROCKET, 9 TEETH PLN-3645
...
42
GEAR, BEVEL, 42 TEETH PLN-3589
...
43
ASSY, KIT, SHIM .750 SHAFT PLN-4691
...
44
SHAFT, DRIVE PLN-3882
...
45
SCREW TAPPING PLN-3724
...
46
GEAR, SPUR, 12 TEETH PLN-3646
...
47
GEAR, SPUR, 20 TEETH PLN-3866
...
48
GEAR, SPUR, 25 TEETH PLN-3719
...
49
GEAR, SPUR, 28 TEETH PLN-3868
...
50
GEAR, SPUR, 31 TEETH PLN-3683
...
51
WASHER, PLAIN .632 X 1.00 X .060 PLN-1145
...
52
WASHER, NEOPRENE PLN-5130
...
53
WASHER, PLAIN .758 X 1.25 X .031 PLN-3184
...
54
AXLE LEFT HAND PLN-3880
...
55
GEAR MITER 15 TEETH PLN-3871
...
56
RING, RETAINING PLN-3656
...
57
GEAR, SPUR, 32 TEETH PLN-3839
...
58
SHAFT, CROSS PLN-3919
...
59
GEAR, MITER, 15 TEETH PLN-3726
...
60
AXLE, R.H. PLN-3881
...
61
HOUSING LOWER PLN-3864-B
...
62
PUCK, FRICTION PLN-3920
...
63
DISC, BRAKE PLN-3276
...
64
SPACER PLN-3758
...
65
JAW, BRAKE PLN-3916
...
66
PIN, DOWEL PLN-3843
...
67
SCREW, SELF-TAPPING PLN-5120
...
68
LEVER, ACTUATING PLN-3768
...
69
WASHER, PLAIN .321 X 1.00 X .055 PLN-3760
...
70
BRACKET, ANTI-ROTATION PLN-3917
...
71
LOCKNUT 5/16-24 PLN-3847
...
72
GREASE PLN-4300
...
...
...
