Husqvarna 435 II Chain Saw

Model: 435 II

Back To Assemblies

Save Part Not Listed?
product name

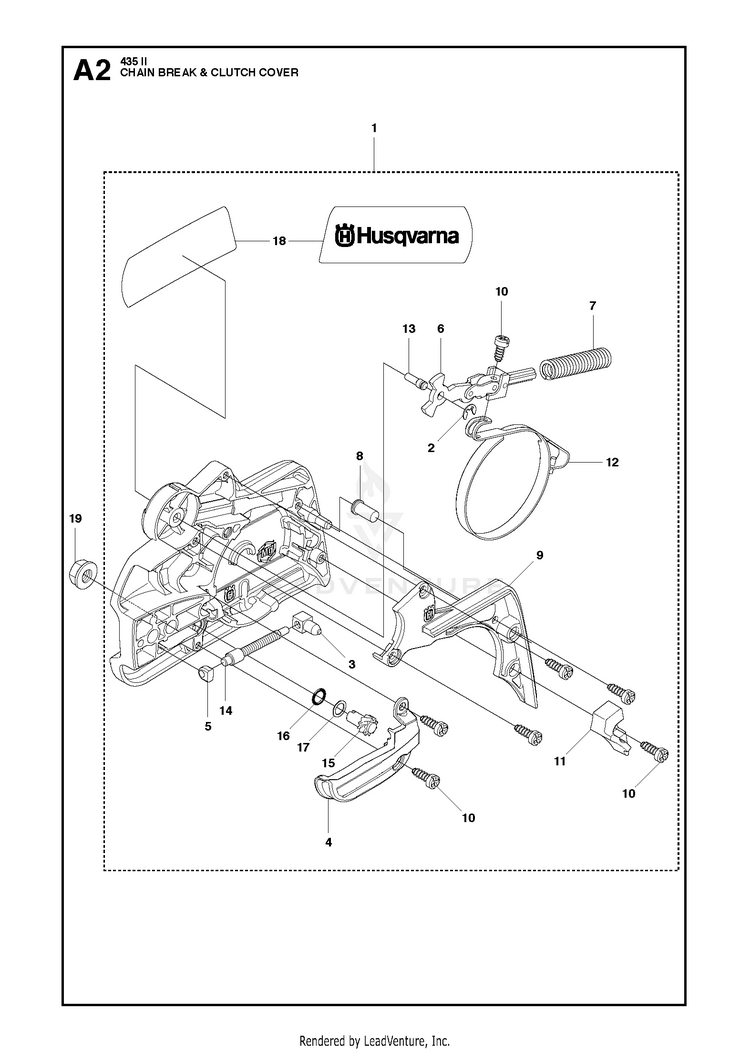

CHAIN BRAKE & CLUTCH COVER 3

...
...
5
SLEEVE HUS-537017401
...
18
LABEL 400 SERIES HUS-544376801
...
11
WEAR PROTECTION HUS-544253101
...
2
E-RING 4 HUS-735310820
...
3
PAWL HUS-537286601
...
9
COVER HUS-544248501
...
12
BRAKE BAND ASSY HUS-544306001
...
17
WASHER HUS-503230063
...
16
O-RING HUS-740480702
...
19
NUT M8 FLANGE HUS-503220001
...
4
CHAIN GUIDE HUS-540063301
...
8
SLEEVE HUS-503855201
...
6
JOINT HUS-503890802
...
1
CLUTCH COVER ASSY STANDARD HUS-536329204
...
14
SCREW HUS-537397001
...
13
PIN HUS-503892901
...
7
BRAKE SPRING HUS-505892601
...
10
SCREW HUS-503217010
...
15
WORM WHEEL HUS-537079402
