Husqvarna 435 II Chain Saw

Model: 435 II

Back To Assemblies

Save Part Not Listed?
product name

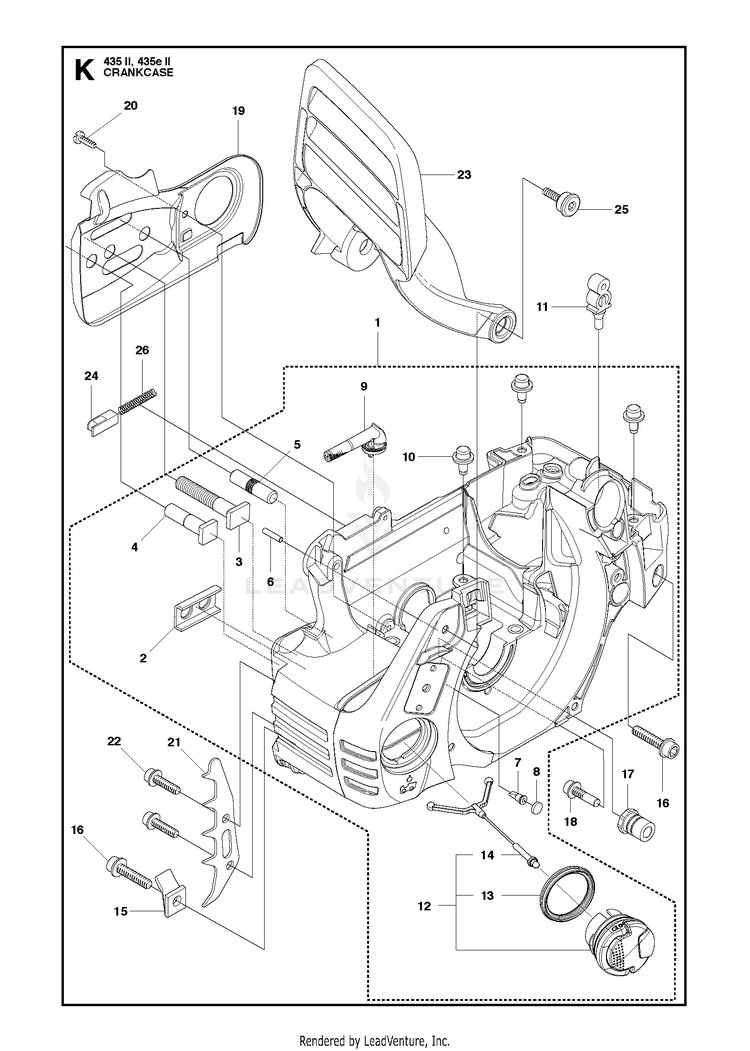

CRANKCASE

...
...
21
SPIKE INNER HUS-544286501
...
5
BAR BOLT HUS-544036401
...
13
SEALING HUS-589241101
...
19
CHAIN GUIDE PLATE HUS-544284601
...
16
SCREW HUS-503218876
...
10
GUIDE PEN HUS-544331601
...
1
CRANKCASE ASSY ORANGE HUS-544932508
...
4
BAR BOLT HUS-537334601
...
26
LOCK SPRING HUS-503436501
...
14
TANK LOCK HUS-503578901
...
9
OIL SCREEN HUS-544083301
...
15
CHAIN CATCHER HUS-503886301
...
11
DAMPNER HUS-597909701
...
18
SCREW IHSCFT HUS-503215103
...
25
SCREW HUS-503893001
...
17
LATERAL SUPPORT HUS-501007601
...
3
BAR BOLT HUS-503875402
...
7
VALVE-CHECK (DUCKBILL) HUS-530026119
...
24
CATCH HUS-503892401
...
2
STIFFENING PLATE HUS-503875802
...
20
SCREW HUS-503217010
...
22
SCREW HUS-503217520
...
23
HAND GUARD HUS-544251501
...
1
CRANKCASE ASSY GREY HUS-544932508
...
8
SINTERED BRONZE FILTER HUS-537403502
...
12
TANK CAP ASSY HUS-522620003
...
6
PIN HUS-503240905
