Husqvarna 435 II Chain Saw

Model: 435 II

Back To Assemblies

Save Part Not Listed?
product name

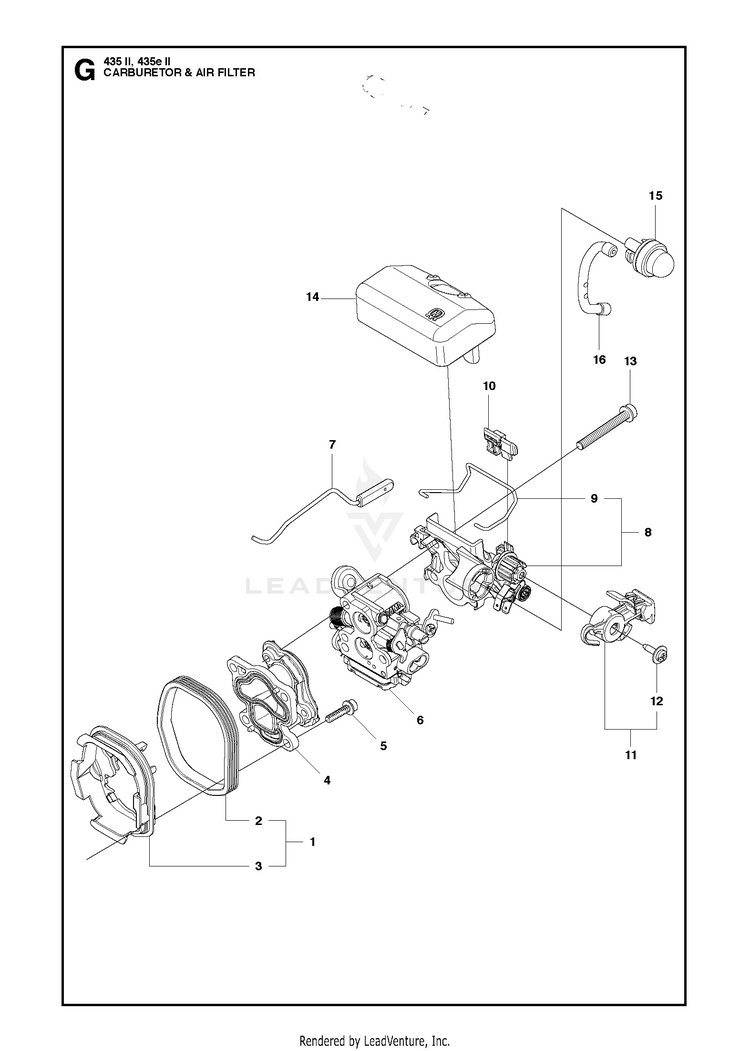

CARBURETOR & AIR FILTER

...
...
14
Air Filters HUS-599729402
...
1
INSULATION WALL HUS-504724701
...
11
CONTROL HUS-544844302
...
13
SCREW HUS-503200240
...
3
INSULATION WALL HUS-504724701
...
16
FUEL HOSE, PURGE HUS-534138001
...
6
CARBURETOR HUS-531215501
...
8
ASSY FILTER HOLDER HUS-544976402
...
5
SCREW HUS-503200216
...
9
SHACKLE HUS-544392601
...
2
INSULATION WALL HUS-504724701
...
12
SCREW HUS-544976601
...
10
GUIDE HUS-504712501
...
4
INLET PIPE FLEXIBLE HUS-504201202
...
15
AIR PURGE BUBBLE HUS-503936601
...
14
Air Filters HUS-599729401
...
7
THROTTLE ROD ASSY HUS-544284401
