Husqvarna 435 II Chain Saw

Model: 435 II

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

CARBURETOR

...
...
9
SCREW HUS-504024101
...
41
SCREW HUS-504027801
...
10
CAP ZAMA 0051034 HUS-505535201
...
4
PLUG HUS-503535601
...
11
SHAFT ASSY HUS-504026101
...
3
NOZZLE ASSY HUS-504024001
...
1
CARBURETOR Zama C1T-EL41 HUS-531215501
...
38
DIAPHRAGM HUS-504025601
...
28
VALVE HUS-504027601
...
12
COLLAR ZAMA 005020 HUS-505110701
...
6
SPRING HUS-537273401
...
37
STRAINER HUS-504025001
...
23
SCREW HUS-503481801
...
15
SCREW HUS-503481801
...
40
COVER HUS-504025901
...
33
GASKET HUS-504024301
...
35
BODY HUS-504024601
...
34
DIAPHRAGM HUS-504024501
...
27
SCREW HUS-503479001
...
42
KIT CARB GASKET HUS-545008031
...
18
LEVER HUS-540053701
...
30
SCREW HUS-504027301
...
17
CHOKE SHAFT ASSY HUS-504026201
...
32
SCREW HUS-504028101
...
2
PLUG HUS-503481101
...
22
VALVE HUS-504027401
...
36
SCREW HUS-504028201
...
20
LEVER HUS-504026301
...
21
SCREW HUS-503479001
...
19
SPRING HUS-504028301
...
14
VALVE HUS-504027501
...
13
SPRING HUS-504028501
...
16
E RING HUS-504026701
...
31
SCREW HUS-504909201
...
25
SPRING HUS-504028401
...
7
LEVER HUS-503665901
...
26
LEVER HUS-544983101
...
29
SCREW HUS-503479201
...
8
PIN HUS-537020801
...
24
THROTTLE SHAFT ASSY HUS-504026001
...
39
GASKET HUS-504025701
...
5
INLET NEEDLE HUS-503479701

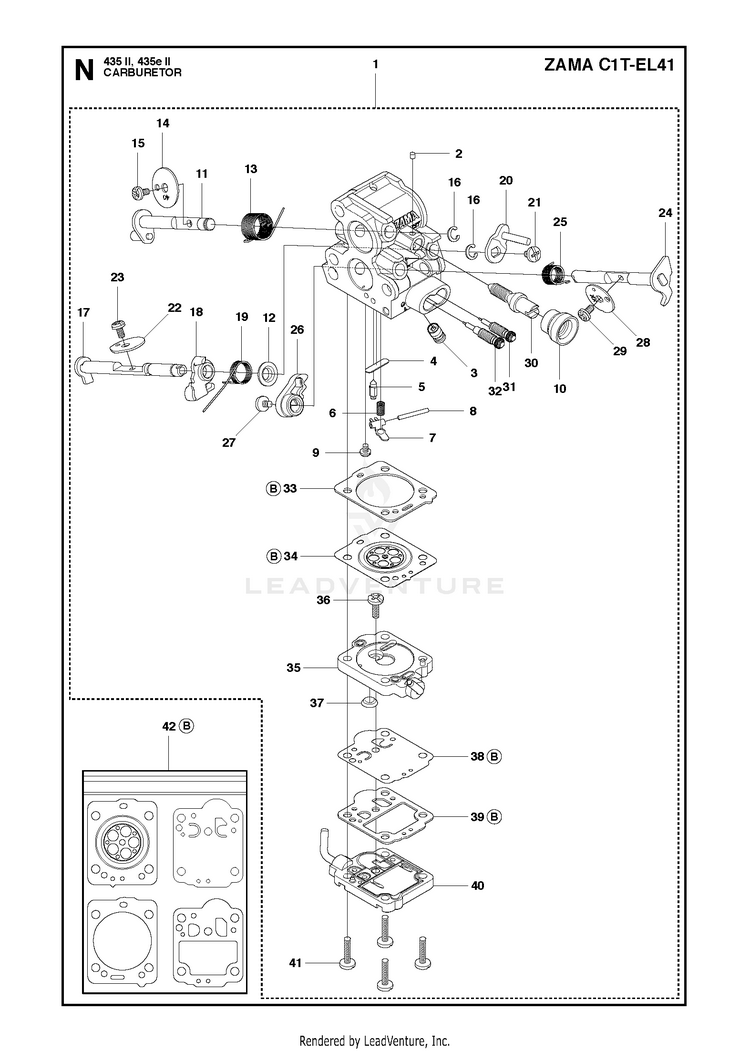

Schematic Image Zoomed
