Husqvarna 435 E Chain Saw

Model: 435 E

Back To Assemblies

Save Part Not Listed?
product name

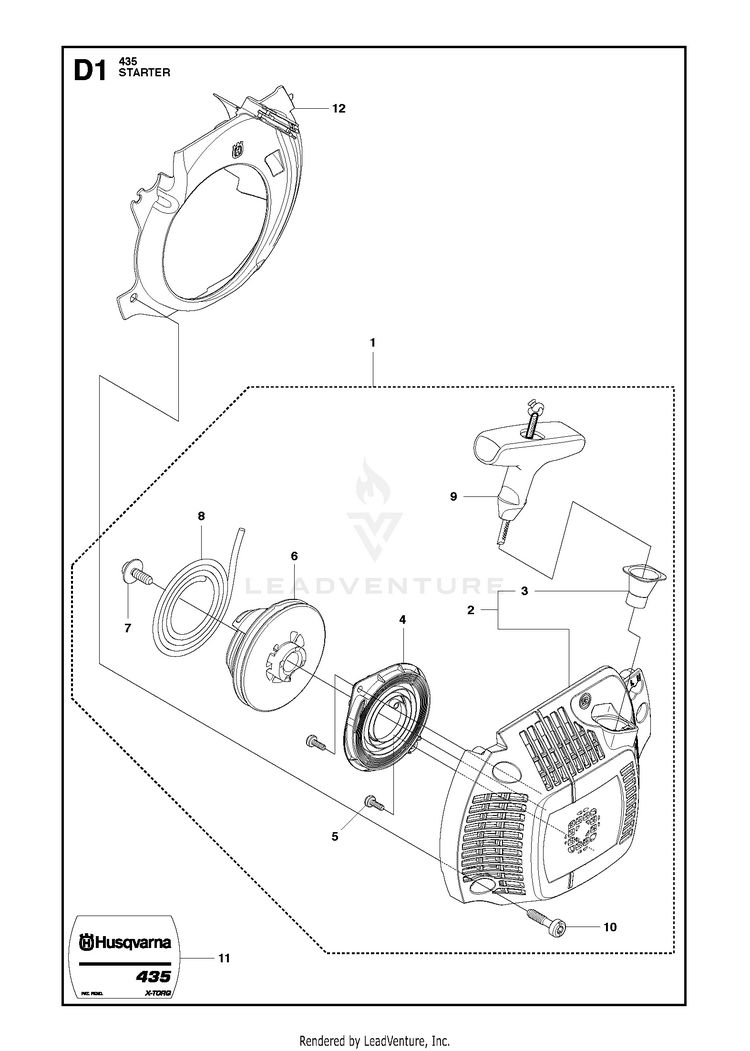

STARTER

...
...
4
SPRING CASSETTE ASSY HUS-540057502
...
8
STARTER ROPE HUS-505305125
...
5
SCREW HUS-503212810
...
11
LABEL 435 HUS-504546801
...
3
SLEEVE HUS-537283201
...
6
STARTER PULLEY HUS-579427901
...
7
SCREW HUS-503217716
...
9
HANDLE HUS-537232501
...
1
STARTER ASSY HUS-504597002
...
12
COOLING AIR CONDUCTOR HUS-544197102
...
2
HOUSING STARTER HUS-504596901
...
10
SCREW HUS-503217321
