Husqvarna 435 E Chain Saw

Model: 435 E

Back To Assemblies

Save Part Not Listed?
product name

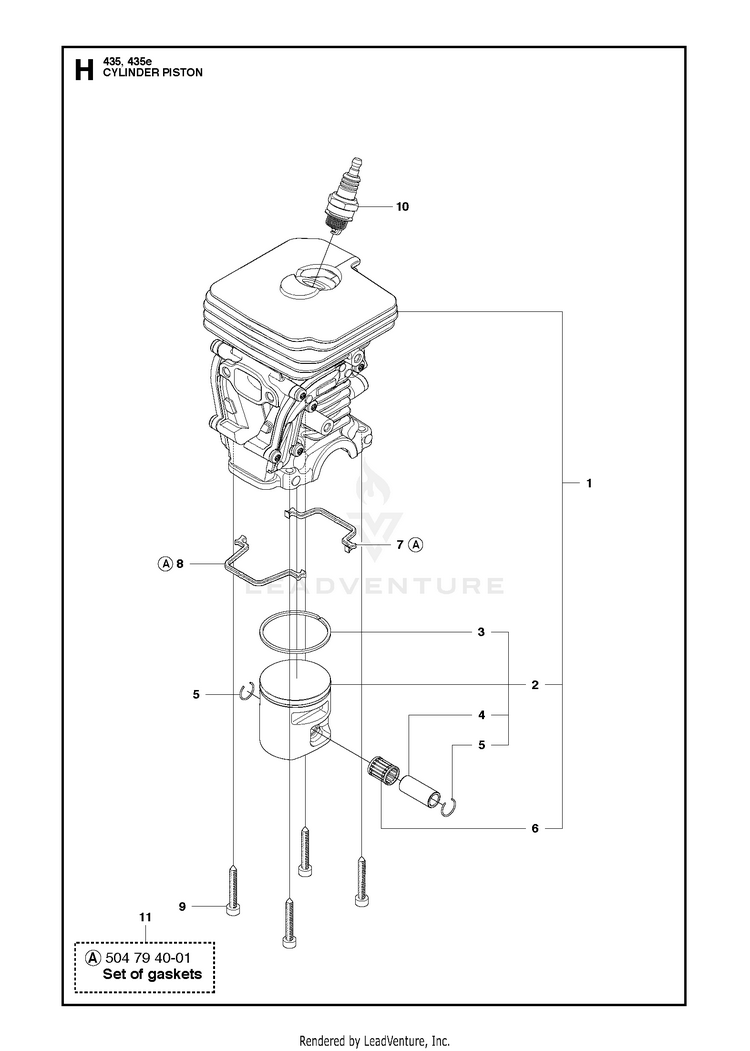

CYLINDER PISTON

...
...
11
GASKET SET HUS-504794001
...
10
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
6
SUPPORT BUSHING HUS-503414101
...
4
PISTON PIN HUS-544406001
...
1
Cylinder HUS-504735105
...
5
LOCKING RING HUS-737441000
...
3
PISTON RING HUS-544405901
...
9
SCREW MC6S 5X25 HUS-725533355
...
7
GASKET HUS-544396001
...
8
GASKET HUS-544395901
...
2
PISTON ASSY HUS-502625007
