product name

Husqvarna 435 E Chain Saw

Model: 435 E

Back To Assemblies

Save Part Not Listed?
product name

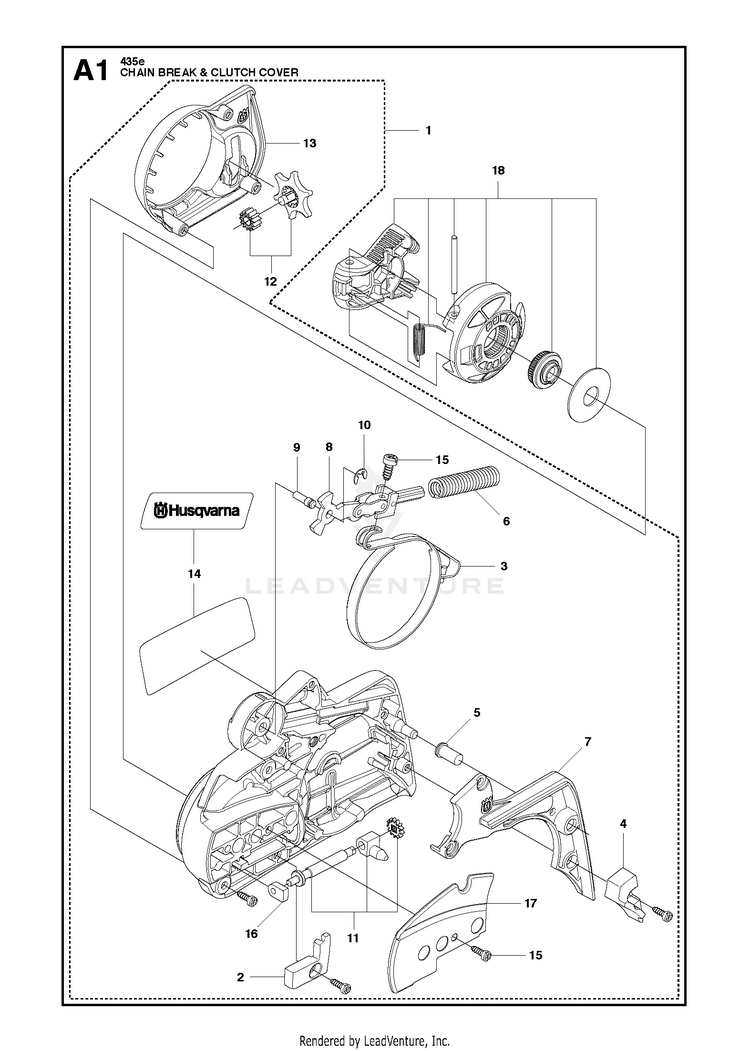

CHAIN BRAKE & CLUTCH COVER

...
...
7
COVER HUS-544248501
...
2
COVER HUS-504542801
...
10
E-RING 4 HUS-735310820
...
1
ASSY CHAIN BRAKE HUSQ ORANGE HUS-544194907
...
18
KNOB, COMPLETE HUS-537347801
...
15
SCREW HUS-503217010
...
3
BRAKE BAND ASSY HUS-544306001
...
4
WEAR PROTECTION HUS-544253101
...
17
WEAR PLATE HUS-505321001
...
13
HEAT SHIELD HUS-537392601
...
8
JOINT HUS-503890802
...
6
BRAKE SPRING HUS-505892601
...
14
DECAL, CLUTCH HOUSING HUS-544357501
...
11
CHAIN TENSIONER SCREW, COMP. HUS-537392901
...
9
PIN HUS-503892901
...
16
BEARING SLEEVE HUS-525354301
...
5
SLEEVE HUS-503855201
...
12
CHAIN TENSIONER WHEEL, COMP. HUS-537347201
