Husqvarna 435 (2009-02) Chain Saw

Model: 435 (2009-02)

Back To Assemblies

Save Part Not Listed?
product name

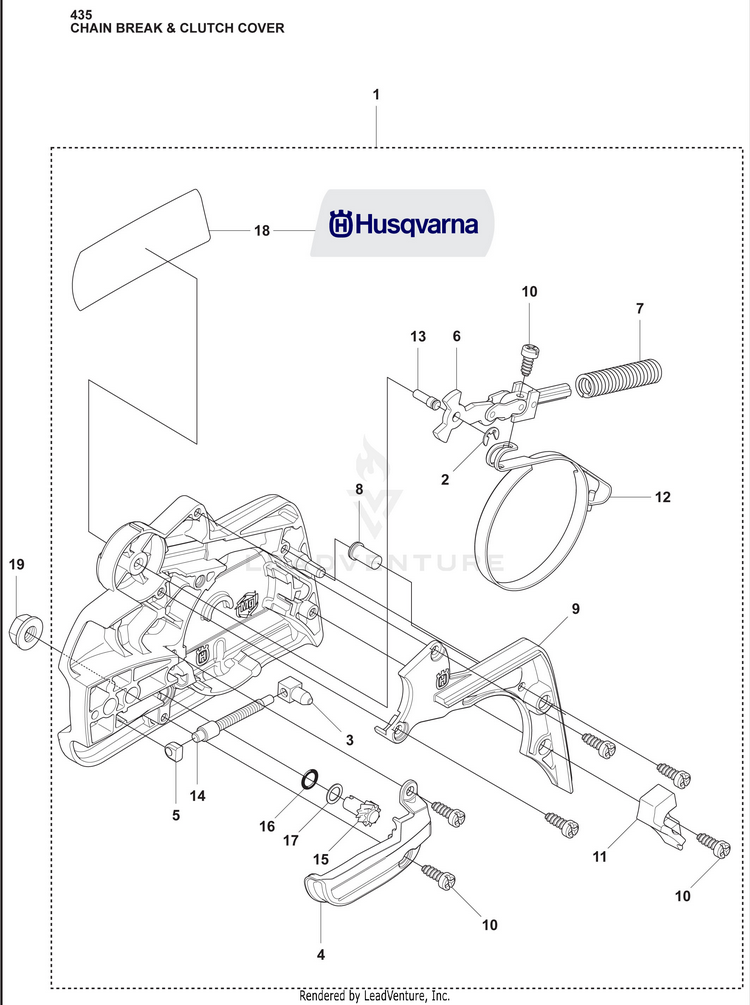

Chain Break & Clutch Cover

...
...
1
CLUTCH COVER ASSY STANDARD Clutch cover assy HUS-536329204
...
2
E-RING 4 E-clip HUS-735310820
...
3
PAWL Pawl HUS-537286601
...
4
CHAIN GUIDE Chain guide HUS-540063301
...
5
SLEEVE Bearing sleeve HUS-537017401
...
6
JOINT Knee joint HUS-503890802
...
7
BRAKE SPRING Brake spring HUS-505892601
...
8
SLEEVE Guide bushing HUS-503855201
...
9
COVER Cover lid HUS-544248501
...
10
SCREW Screw HUS-503217010
...
11
WEAR PROTECTION Wear protection HUS-544253101
...
12
BRAKE BAND ASSY Brake band assy HUS-544306001
...
13
PIN Pin HUS-503892901
...
14
SCREW Worm screw HUS-537397001
...
15
WORM WHEEL Worm wheel HUS-537079402
...
16
O-RING O-ring HUS-740480702
...
17
WASHER Washer HUS-503230063
...
18
LABEL 400 SERIES Label, clutch cover HUS-544376801
...
19
NUT M8 FLANGE Nut HUS-503220001
