Husqvarna 430 LS (2010-01) Brush Cutter

Model: 430 LS (2010-01)

Save Part Not Listed?
product name

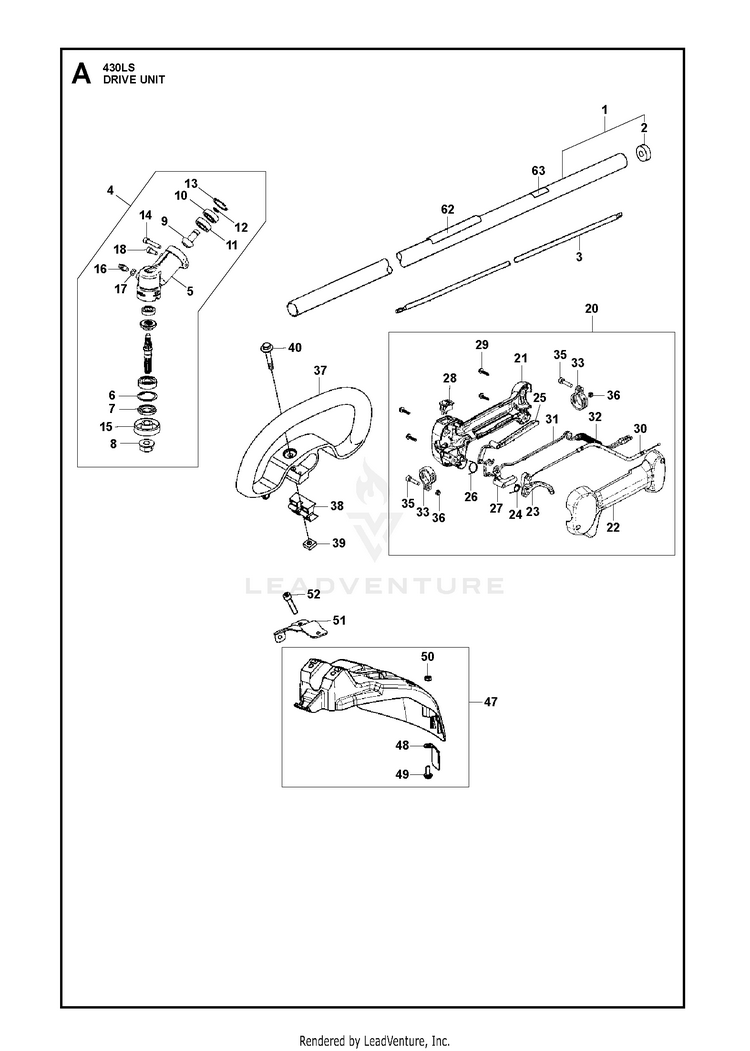

DRIVE

...
...
2
SEAL HUS-521825401
...
49
SCREW HUS-502843901
...
38
SPACER PLASTIC HUS-503940301
...
32
TUBE HUS-521805501
...
22
BODY LEFT HUS-574390701
...
12
RING HUS-521821801
...
20
GRIP ASSEMBLY HUS-575385102
...
37
HANDLE HUS-503871906
...
52
BOLT, TORX HUS-512846401
...
14
BOLT TORX HUS-512845701
...
1
PIPE COMP HUS-528868901
...
30
CABLE-C HUS-529257101
...
62
LABEL CAUTION HUS-529266401
...
18
BOLT, TORX HUS-521861101
...
4
GEARCASE HUS-574716301
...
39
NUT HUS-502197101
...
27
LEVER JOINT HUS-529259201
...
17
WASHER HUS-505171601
...
40
BOLT HUS-510906101
...
50
NUT HUS-521000601
...
51
BRACKET HUS-521653101
...
15
HOLDER(A) HUS-515632501
...
47
GUARD HUS-578403402
...
7
SEAL HUS-514382501
...
25
SPRING, THROTTLE HUS-529259601
...
8
NUT HUS-521804001
...
28
SWITCH HUS-521851601
...
29
SCREW HUS-521517701
...
36
NUT HUS-579000001
...
5
GEARCASE HUS-574267501
...
33
BAND HUS-529259401
...
9
PINION HUS-528840101
...
48
BLADE HUS-574395601
...
26
LEVER SAFETY HUS-575385301
...
23
LEVER THROTTLE HUS-575385201
...
13
RP_RING HUS-505169401
...
16
FITTING HUS-505171501
...
31
CORD - C HUS-529256101
...
21
BODY RIGHT HUS-574390601
...
35
BOLT TORX HUS-506689001
...
24
SPRING, THROTTLE HUS-529259601
...
11
BEARING HUS-505169201
...
6
RING HUS-526760701
...
10
BEARING HUS-521822001
...
3
SHAFT HUS-514344201
...
63
LABEL HUS-505295801

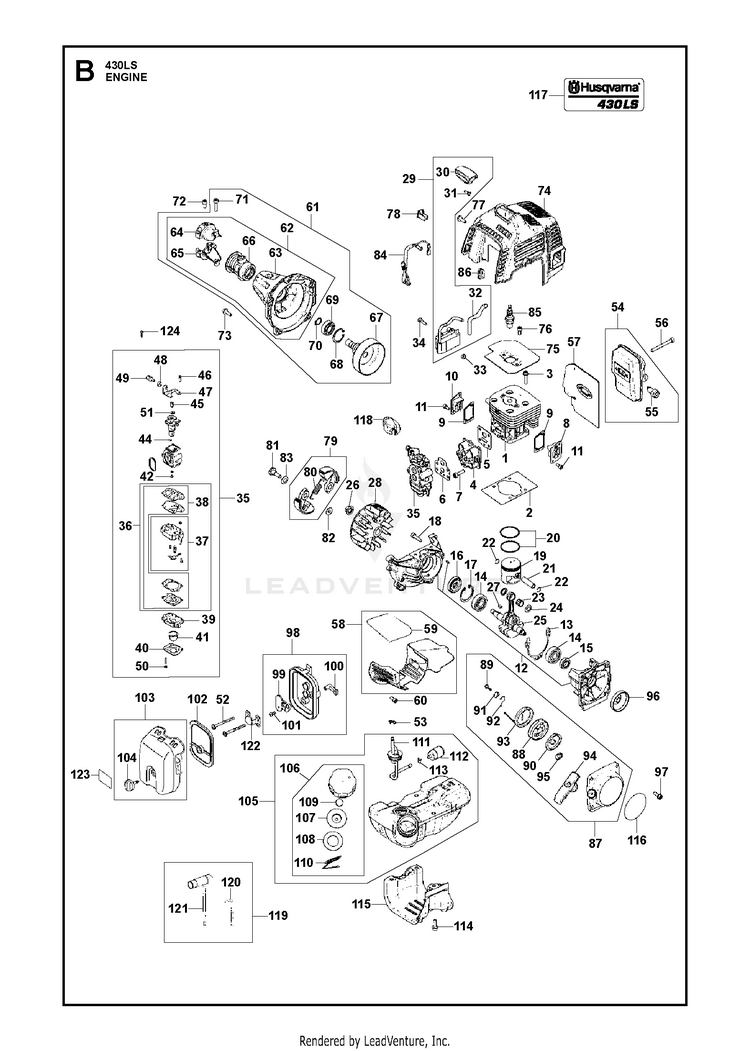

ENGINE

...
...
46
SCREW HUS-505307901
...
71
BOLT TORX HUS-506689001
...
69
BEARING HUS-525953201
...
92
SWING ARM HUS-504114801
...
115
GUARD, TANK HUS-521616701
...
111
Fuel Hoses HUS-597967303
...
116
DECAL HUS-575638801
...
19
PISTON HUS-528073801
...
44
RING HUS-516523601
...
40
1OVER HUS-506741001
...
27
KEY HUS-506689401
...
64
BRACKET (A) (RPLS T170031211) HUS-521768201
...
54
MUFFLER HUS-575584201
...
107
HOLDER-A HUS-515369401
...
24
WASHER HUS-504120201
...
117
DECAL HUS-575766401
...
53
CLIP HUS-506741501
...
101
SCREW HUS-506673801
...
66
CUSHION HUS-512360501
...
38
GASKET KIT HUS-583983301
...
73
BOLT HUS-515391301
...
77
BOLT HUS-506745601
...
118
COVER HUS-506744201
...
120
BAR HUS-505312001
...
100
LEVER HUS-528074401
...
96
PULLEY HUS-504114401
...
5
GASKET, INSULATOR HUS-528070201
...
11
BOLT HUS-504119201
...
17
RING HUS-504121001
...
67
DRUM (RPLS 481031120-22) HUS-521609801
...
8
COVER, TRS HUS-521614501
...
21
PIN HUS-504120601
...
39
BODY HUS-506740901
...
108
PACKING HUS-506744301
...
110
STOPPER HUS-506745801
...
121
TOOL SET (RPLS 848-8UD-0120) HUS-521532701
...
99
PLATE, CHOKE HUS-528074301
...
37
CARBURETOR BODY HUS-502238401
...
75
PLATE HUS-511377501
...
9
GASKET, TR HUS-521614801
...
105
TANK ASSY HUS-579141304
...
119
TOOL SET (RPLS 848-8UD-0120) HUS-521532701
...
16
SEAL HUS-505296701
...
123
LABEL HUS-523071401
...
94
KNOB HUS-506614701
...
50
SCREW HUS-506741101
...
65
BRACKET (B) HUS-521768301
...
106
CAP A HUS-505309601
...
32
TUBE HUS-513764701
...
57
GASKET HUS-528070301
...
84
CORD-COMP HUS-512328601
...
97
BOLT HUS-506745601
...
42
NEEDLE HUS-511351401
...
7
BOLT, TORX HUS-505040401
...
41
PUMP HUS-505306701
...
59
SHEET HUS-521615401
...
109
FILTER HUS-506746801
...
28
ROTOR HUS-521769301
...
113
CLIP HUS-506707001
...
13
GASKET CASE HUS-504121201
...
58
PLATE-A HUS-521615201
...
2
GASKET BASE HUS-504119101
...
88
REEL HUS-504114701
...
47
BRACKET HUS-506746001
...
60
BOLT 08 HUS-504119601
...
114
BOLT HUS-512845601
...
22
RING HUS-504120901
...
80
SPRING HUS-515389301
...
49
SCREW CABLE ADJUST HUS-505308201
...
104
KNOB HUS-575331401
...
4
INSULATOR HUS-528073701
...
124
SCREW HUS-505308301
...
26
NUT(RPLS 1140-43230&182301) HUS-516437401
...
79
SHOE-C HUS-515389101
...
14
BEARING HUS-504121401
...
31
SPRING HUS-515415201
...
18
BOLT TORX HUS-506689001
...
6
GASKET, CARB (RPLS T155113131) HUS-521755001
...
95
PLATE.STOPPER HUS-515385601
...
122
PLATE HUS-528074801
...
86
GROMMET HUS-506615901
...
89
SCREW HUS-515367101
...
3
BOLT HUS-506745201
...
35
CARBURETOR A WYA-125 HUS-528075501
...
85
SPARK PLUG CMR7H-10 HUS-528074001
...
81
SCREW HUS-513189601
...
45
SWIVEL HUS-506741201
...
55
ARRESTER HUS-506615601
...
15
SEAL HUS-504121501
...
34
BOLT HUS-506745701
...
82
WASHER HUS-505054401
...
76
BOLT 08 HUS-504119601
...
83
WASHER HUS-513189501
...
98
CLEANER BODY ASSY HUS-528074901
...
70
RING HUS-516124101
...
1
CYLINDER HUS-528073301
...
36
REBUILD KIT HUS-528070101
...
102
FILTER HUS-587930701
...
56
BOLT HUS-504116501
...
112
FILTER HUS-506614601
...
12
CRANKCASE-C HUS-521615501
...
74
COVER HUS-575584301
...
62
T159031100000 HUS-570798201
...
51
WASHER HUS-506746101
...
90
SPRING, SPIRAL HUS-504115001
...
72
BOLT HUS-529268101
...
29
COIL-A HUS-512332001
...
93
ROPE HUS-504114901
...
87
RECOIL ASSY HUS-512328801
...
10
COVER,TRF (RPLS 848F6012D1) HUS-521614701
...
25
CRANKSHAFT C HUS-504119301
...
63
HOUSING HUS-521755201
...
23
BEARING HUS-504120101
...
33
SPACER HUS-504118601
...
30
CAP HUS-521610001
...
48
NUT HUS-510487401
...
68
RING HUS-506609901
...
61
HOUSING ASSY HUS-528071001
...
20
RING HUS-504120501
...
52
BOLT TORX HUS-521515501
...
103
COVER HUS-575331104
