Husqvarna 426 LST (2010-01) Trimmer

Model: 426 LST (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

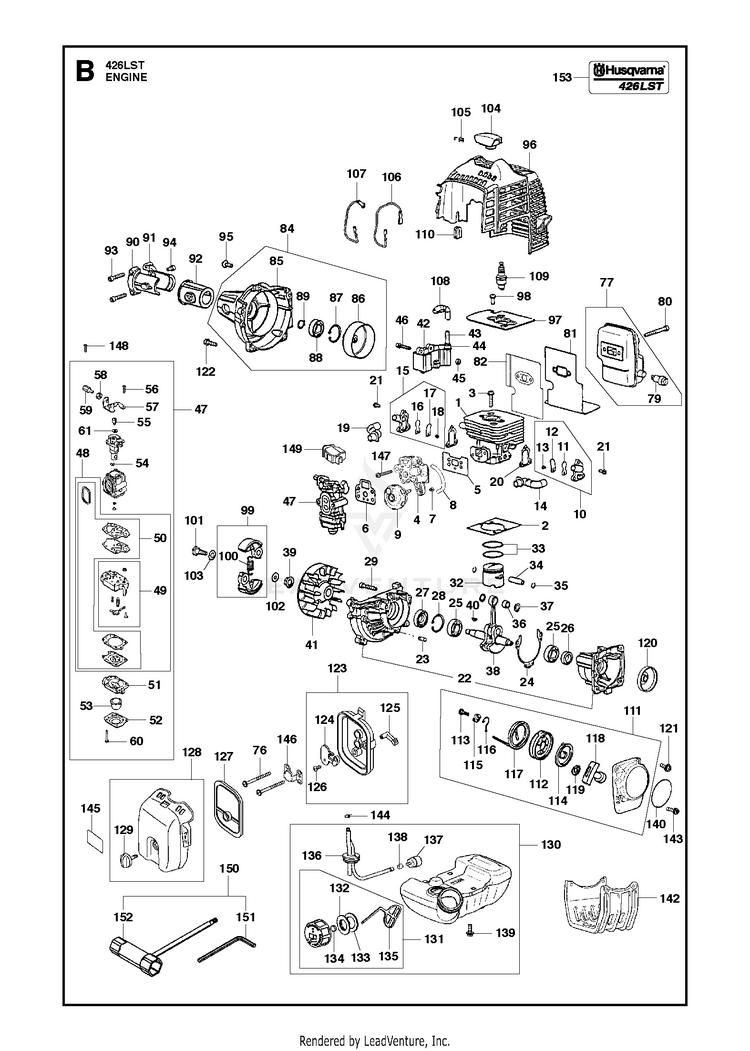

ENGINE

...
...
11
HANDLE 326Lx, LDx HUS-503995602
...
6
HSG THROTTLE RH 326L, LS HUS-503995501
...
7
THROTTLE WIRE ASSY HUS-544171703
...
12
SHORT-CIRCUIT CABLE HUS-537414201
...
2
SCREW HUS-503216618
...
1
HANDLE HUS-503852902
...
6
HANDLE 326Lx, LDx HUS-503995502
...
11
HANDLE HALF HSG LH 326L, LS HUS-503995601
...
3
STOP BUTTON HUS-537419001
...
5
THROTTLE LOCK HUS-503878001
...
8
SPRING HUS-537011301
...
4
VIBRATION DAMPER 326L, Lx, LS, LDx HUS-503961401
...
10
THROTTLE TRIGGER HUS-503877903
...
9
LEVER HUS-503918101
...
13
SCREW MT5X11 HUS-503961301
...
14
O-RING 8X1.6 HUS-740420600
Schematic Image Zoomed
