Husqvarna 426 Ex (2010-01) Trimmer/Edger

Model: 426 Ex (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

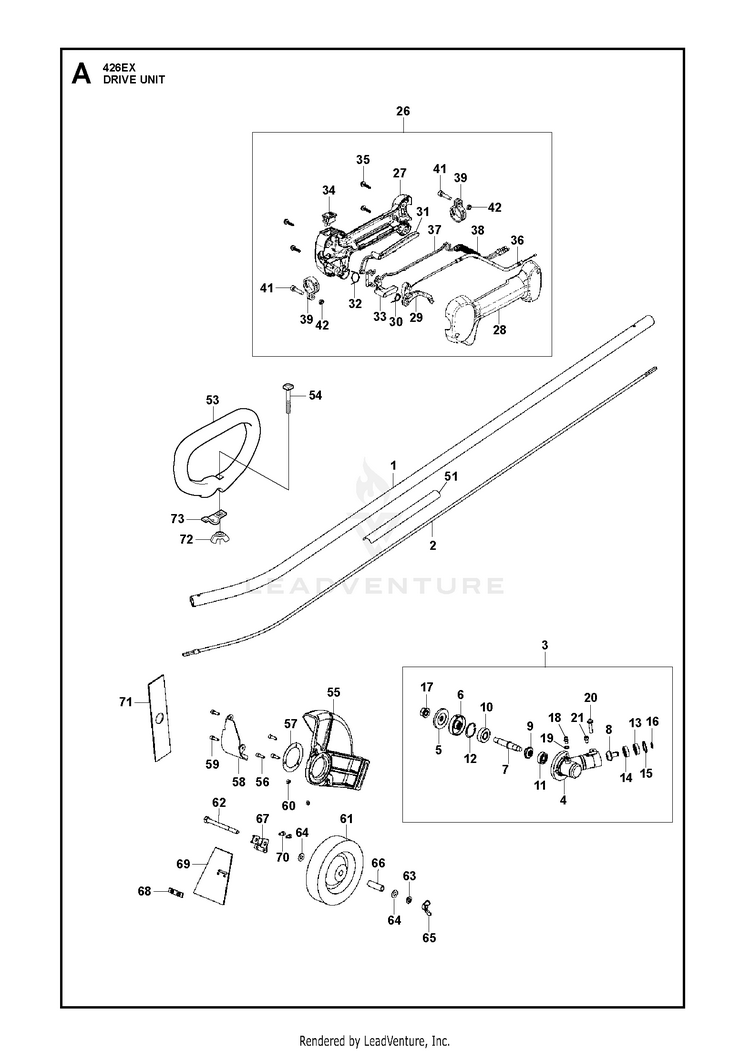

DRIVE

...
...
15
RP_RING HUS-505169401
...
19
WASHER HUS-505171601
...
37
CORD - C HUS-529256101
...
5
HOLDER(B) HUS-515537501
...
29
LEVER THROTTLE HUS-575385201
...
6
HOLDER(A) HUS-515537401
...
33
LEVER JOINT HUS-529259201
...
34
SWITCH HUS-521851601
...
55
Guards HUS-505171702
...
38
TUBE HUS-521805501
...
72
WING NUT HUS-503222601
...
17
NUT HUS-521804001
...
1
PIPE COMP HUS-526058301
...
11
BEARING HUS-515537001
...
54
SCREW HUS-503219835
...
67
BRACKET HUS-526059501
...
57
PLATE HUS-505171901
...
27
BODY RIGHT HUS-574390601
...
36
CABLE-C HUS-529257101
...
59
BOLT M5 X L16 ALLEN HUS-505171801
...
63
WASHER HUS-505172901
...
61
WHEEL HUS-505172501
...
26
GRIP ASSEMBLY HUS-575385102
...
53
HANDLE, LOOP HUS-537076801
...
62
BOLT HUS-526059601
...
31
LEVER SAFETY HUS-575385301
...
71
BLADE HUS-505175301
...
3
GEARCASE HUS-512556201
...
16
RING HUS-521821801
...
10
BEARING*** HUS-510569701
...
8
PINION HUS-512556101
...
58
PROTECTOR HUS-526059401
...
2
FLEX SHAFT HUS-526058601
...
70
BOLT M5 X L10 HUS-505173901
...
12
RING HUS-504121001
...
28
BODY LEFT HUS-574390701
...
30
SPRING, THROTTLE HUS-529259601
...
69
RUBBER HUS-505173701
...
42
NUT HUS-579000001
...
14
BEARING HUS-505169201
...
41
BOLT TORX HUS-506689001
...
39
BAND HUS-529259401
...
18
FITTING HUS-505171501
...
4
GEARCASE HUS-512556001
...
73
CLAMP HUS-530038599
...
68
PLATE HUS-505173601
...
65
NUT HUS-527068601
...
7
SHAFT.GEAR HUS-515537201
...
66
SLEEVE HUS-505173301
...
60
NUT HUS-505172301
...
21
BOLT M5 X L10 HUS-505173901
...
64
WASHER HUS-505173001
...
20
BOLT HUS-526059101
...
56
BOLT M5 X L16 ALLEN HUS-505171801
...
51
NEEDS DESCRIPTION HUS-575385801
...
9
GEAR HUS-515537301
...
13
BEARING HUS-505169301
...
32
SPRING HUS-511591801
...
35
SCREW HUS-521517701
