Husqvarna 425181 (1994) Tractor

Model: 425181 (1994)

Back To Assemblies

Save Part Not Listed?
product name

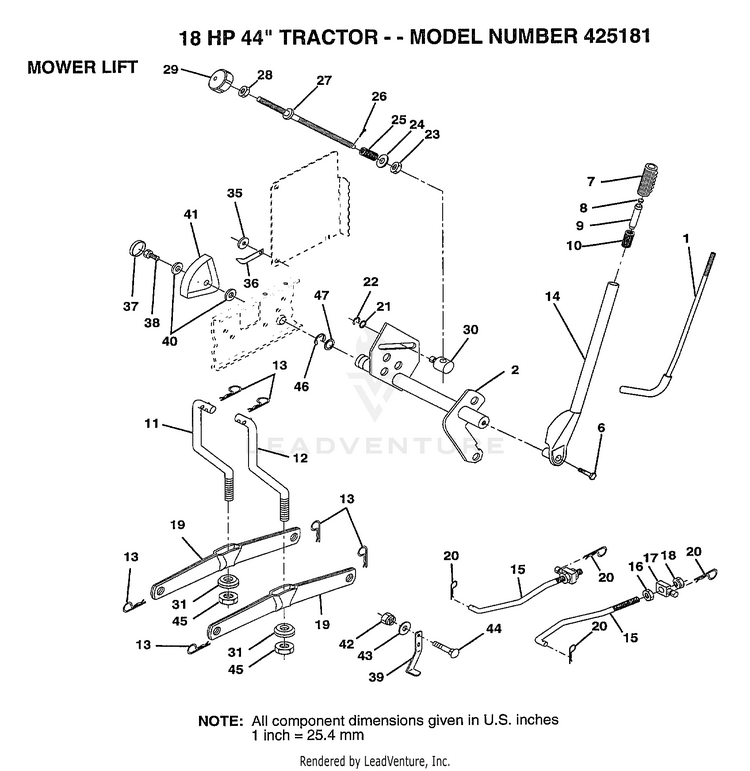

MOWER LIFT/18 HP 44"

...
...
1
LEVER ROD LT HUS-121006X
...
2
SHAFT LIFT W/IND HUS-140673
...
4
E-RING HUS-12000022
...
5
WASHER HUS-19292016
...
6
"BOLT,HEX" HUS-74780624
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-124526X
...
9
SUB= 125925X HUS-122364X
...
10
SPRING T HUS-2876H
...
11
SUB= 918139865 HUS-139865
...
12
SUB= 151140 HUS-139866
...
13
SUB= 85902 HUS-4939M
...
14
SUB= 123096X HUS-121002X
...
15
LINK.FRONT HUS-127218
...
16
NUT HUS-73350800
...
17
TRUNION HUS-130171
...
18
NUT.LK.W/WSH.1/2. HUS-73800800
...
19
ARM SUSP REAR HUS-139868
...
20
RETAINER.SPRING HUS-3146R
...
21
WASHER HUS-19151216
...
22
KLIP RING HUS-12000037
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING T HUS-2876H
...
26
SUB= 3145 HUS-76020308
...
27
ROD LIFT LT HUS-110729X
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
30
TRUNION LT HUS-110810X
...
31
BEARING PVT LH HUS-140302
...
35
WASHER T HUS-120529X
...
36
POINTER HGT IND HUS-123933X505
...
37
"PLUG,HOLE" HUS-123935X
...
38
SCREW HUS-17490512
...
39
STOP.OVER.CENTER HUS-142992
...
40
WASHER HUS-19112410
...
41
HEIGHT INDICATOR HUS-123934X
...
42
SUB= 73690600 HUS-73680600
...
43
WASHER GT HUS-19131612
...
44
BOLT HUS-72240608
...
45
NUT.CROWNLOCK.3/8 HUS-73540600
...
46
E-RING HUS-12000022
...
47
WASHER HUS-19292016
