Husqvarna 425180 (1994) Tractor

Model: 425180 (1994)

Back To Assemblies

Save Part Not Listed?
product name

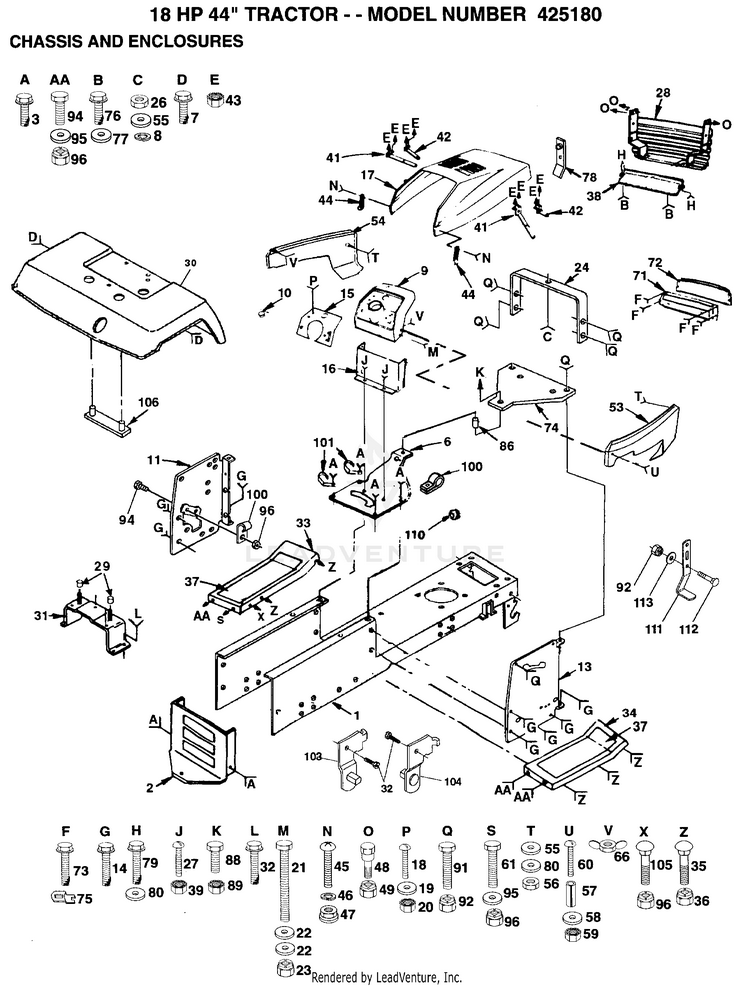

CHASSIS AND ENCLOSURES

...
...
1
SUB= 145501 HUS-140341
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
6
SUB= 127543X011 HUS-127543
...
7
SCREW LT HUS-17490608
...
8
LOCKWASHER HUS-10040400
...
9
DASHBOARD BLACK HUS-140398
...
10
PLUG-DASH T HUS-8022J
...
11
PANEL.DASH.LH HUS-138644
...
13
PANEL.DASH.RH HUS-138643
...
14
SCREW HUS-17490612
...
15
PLATE SLKSCR YP HUS-140299X012
...
16
LOWER DASH HUS-104805X
...
17
SUB= 150301X505 HUS-132635X505
...
18
SCREW HUS-74180512
...
19
WASHER HUS-19111116
...
20
NUT HUS-73510500
...
21
BOLT HUS-74760616
...
22
WASHER HUS-19131312
...
23
SUB= 73690600 HUS-73680600
...
24
SUPPORT ASS'Y HUS-124130X
...
26
SUB= 50675 HUS-73220400
...
27
SCREW HUS-74180512
...
28
SUB= 131681X431 HUS-131681
...
29
NUT-PUSH YT HUS-105531X
...
30
FENDER.PNT. HUS-140002X505
...
31
BRKT.ASM.FENDER HUS-137113
...
32
SCREW HUS-17490612
...
33
SUB= 145244X505 HUS-105465X505
...
34
SUB= 145243X505 HUS-105464X505
...
35
BOLT HUS-72110606
...
36
SUB= 73690600 HUS-73680600
...
37
FOOTREST PAD HUS-133671
...
38
GRILL STRAP HUS-105419X505
...
39
NUT HUS-73510500
...
41
SUB= 155013 HUS-106784X
...
42
SUB= 155013 HUS-104618X
...
43
NUT HUS-73510400
...
44
HOOD LATCH T HUS-109808X
...
45
SCREW HUS-74191008
...
46
LOCKWASHER HUS-10071000
...
47
WELDNUT HUS-2029J
...
48
SUB= 7605J HUS-123481X
...
49
SUB= 73690400 HUS-73680400
...
53
PANEL SIDE RH HUS-140679X505
...
54
SUB= 150302X505 HUS-140678X505
...
55
WASHER PM HUS-19091216
...
56
SUB= 50675 HUS-73220400
...
57
SPACER LT HUS-7206J
...
58
WASHER HUS-19070818
...
59
NUT HUS-73731000
...
60
SCREW HUS-74981020
...
61
SUB= 74760616 HUS-74760614
...
66
SUB= 146525 HUS-123198X
...
71
SUB= 147717 HUS-124392X417
...
72
LENS LT HUS-106395X
...
73
SCREW LT HUS-17211010
...
74
PLATE.SUPT.BATTER HUS-140181
...
75
"""J"" FASTENER LT" HUS-104755X
...
76
SCREW HUS-17490512
...
77
WASHER HUS-19131210
...
78
SUB= 532132644 HUS-132644
...
79
SCREW HEX CRT HUS-17490412
...
80
WASHER HUS-19091016
...
86
SPACER HUS-121236X
...
88
BOLT HUS-74760532
...
89
NUT HUS-73800500
...
91
BOLT HUS-74780616
...
92
NUT HUS-73800600
...
94
SUB= 74780612 HUS-74760612
...
95
WASHER HUS-19131312
...
96
SUB= 73690600 HUS-73680600
...
100
CLIP T HUS-2751R
...
101
"CLIP,INSULATOR" HUS-126471X
...
103
BRACKET ASM LH HUS-139886
...
104
BRACKET ASM RH HUS-139887
...
105
SUB= 72110608 HUS-72140608
...
106
STRAP ASM FENDER HUS-140675
...
110
SUB= 9151R HUS-110436X
...
111
STOP.OVER.CENTER HUS-142992
...
112
SUB= 72110608 HUS-72140608
...
113
WASHER GT HUS-19131612
