Husqvarna 425180 (1994) Tractor

Model: 425180 (1994)

Back To Assemblies

Save Part Not Listed?
product name

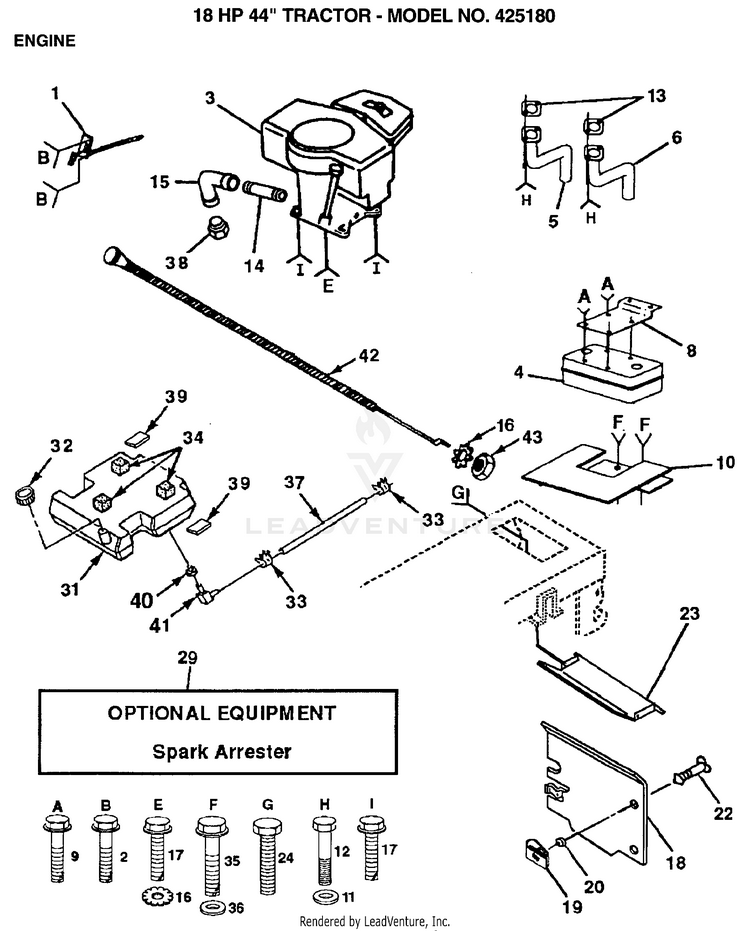

ENGINE

...
...
1
CONTROL.THROTTL HUS-137214
...
2
SCREW LT HUS-17720410
...
3
ENGINE, KOHLER TYPE #58559 HUS-MV18S
...
4
SUB= 149723 HUS-137978
...
5
"TUBE,MANIFOLD LH" HUS-136215
...
6
"TUBE,MANIFOLD RH" HUS-136216
...
8
BRACKET MUFFLER HUS-122439X
...
9
SCREW ST HUS-17190408
...
10
SUB= 145552 HUS-128199
...
11
LOCKWASHER HUS-10040500
...
12
SCREW HUS-74570512
...
14
PIPE NIPPLE LT HUS-13280336
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
17
SCREW LT HUS-17490624
...
18
HEAT SHIELD HUS-133746
...
19
RECEPTACLE LT HUS-105839X
...
20
RETAINER LT HUS-105838X
...
22
STUD.1/4.TURN HUS-123650X
...
23
HEAT SHIELD HUS-128953
...
24
SCREW HUS-17021008
...
29
SUB= 532137180 HUS-137180
...
31
SUB= 151346 HUS-141069
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
34
PAD-SPACER LT HUS-106082X
...
35
SCREW HUS-17490512
...
36
WASHER HUS-19131614
...
37
LINE, FUEL HUS-543R
...
39
PAD IDLER TI HUS-109227X
...
40
BUSHING OUTLET T HUS-3645J
...
41
STEM.TANK.FUEL HUS-139277
...
42
SUB= 132781 HUS-132782
...
43
SUB= 7810H HUS-73610600
