product name

Husqvarna 425170 (1994) Tractor

Model: 425170 (1994)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
SUB= 532132748 HUS-132747
...
2
SCREW LT HUS-17720410
...
3
ENGINE B&S 18HP HUS-422707
...
4
NUT HUS-73510600
...
5
CLIP T HUS-2751R
...
6
SUB= 272250 HUS-8545J
...
7
LOCKWASHER HUS-10040400
...
8
SUB= 74780414 HUS-74780412
...
9
PIPE NIPPLE LT HUS-13280336
...
10
ELBOW HUS-13200300
...
11
CHOKE CONTROL HUS-132781
...
13
MUFFLER HYT HUS-108373X
...
14
LOCKWASHER HUS-11050600
...
15
SUB= 7810H HUS-73610600
...
16
EXHAUST TUBE T HUS-100229L
...
17
LOCKWASHER HUS-11050600
...
18
SCREW LT HUS-17490624
...
20
TANK FUEL 1.9 NAT HUS-141291
...
21
HOSE CLAMP HUS-123487X
...
22
CAP ASM FUEL HUS-140527
...
23
STRAP TANK FUEL HUS-140020
...
24
STRAP TANK FRONT HUS-140019
...
25
SCREW HUS-17490612
...
26
"STRIP,FORM" HUS-126564X
...
28
HOSE T HUS-7833R
...
29
SUB= 532137180 HUS-137180

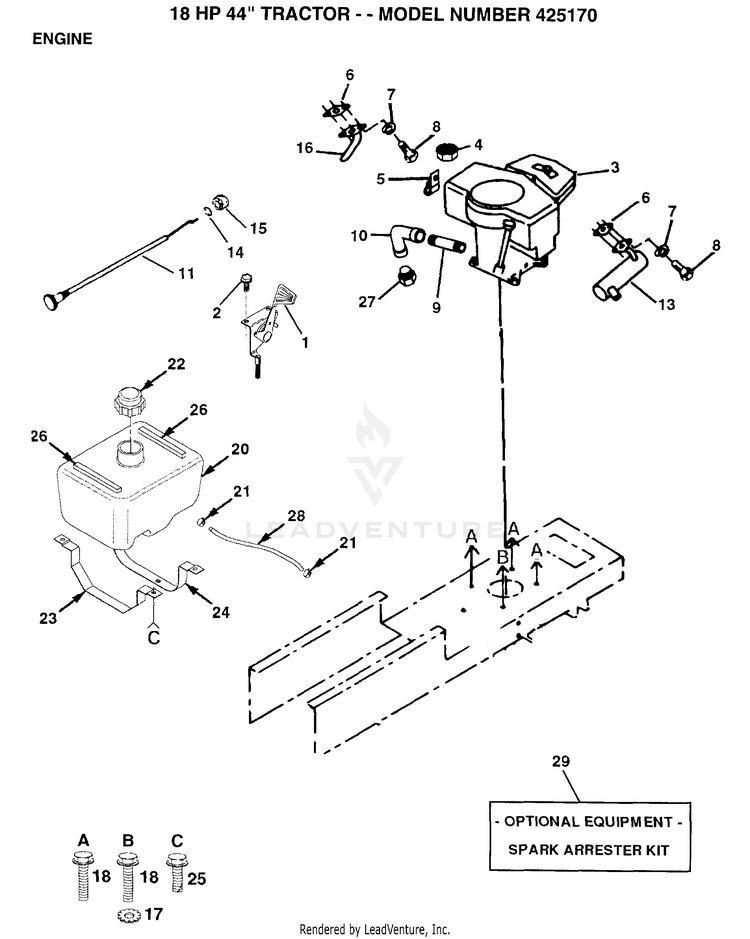

Schematic Image Zoomed
