Husqvarna 4230A59 (1999 & Before) Walk Behind Rotary Mower

Model: 4230A59 (1999 & Before)

Save Part Not Listed?
product name

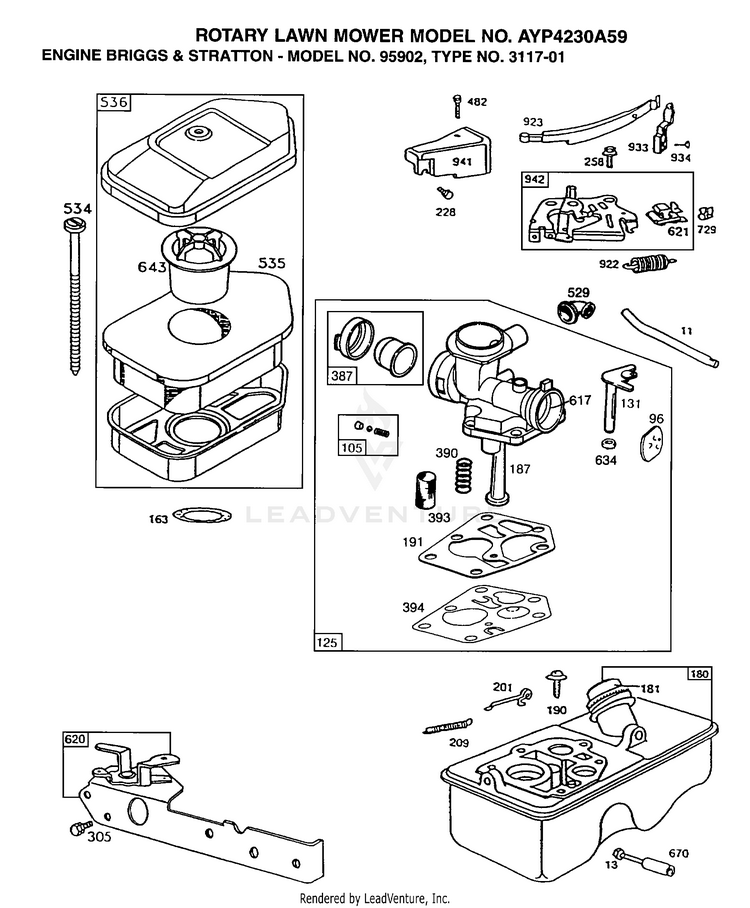

ENGINE/BRIGGS AND STRATTON

...
...
11
TUBE, BREATHER HUS-231774
...
13
SCREW, CYLINDER HEAD HUS-93111
...
96
VALVE THROTTLE HUS-224412
...
105
SEAT, NEEDLE VALVE HUS-494409
...
125
CARBURETOR ASSEMBLY HUS-494407
...
131
SHAFT AND LEVER, THROTTLE HUS-281047
...
163
GASKET, AIR CLEANER HUS-271139
...
180
TANK ASSEMBLY, FUEL HUS-494406
...
181
CAP, FUEL TANK HUS-493982
...
187
PIPE, FUEL HUS-493981
...
190
SCREW, FUEL TANK MOUNTING HUS-93440
...
191
GASKET, TANK MOUNTING HUS-272372
...
201
LINK, GOVERNOR HUS-262753
...
209
SPRING, GOVERNOR HUS-262759
...
228
SCREW, HEX HEAD HUS-93490
...
258
SCREW, AIR CLEANER HUS-94018
...
305
SCREW, SEMS, BLOWER HOUSING MNT. HUS-94153
...
387
PRIMER BULB HUS-494408
...
390
SPRING, DIAPHRAGM HUS-262764
...
393
SCREEN, CARBURETOR HUS-262734
...
394
DIAPHRAGM, CARBURETOR HUS-281028
...
482
SCREW, SEMS HUS-93621
...
529
GROMMET, BREATHER TUBE HUS-67838
...
534
SCREW HUS-93865
...
535
ELEMENT, AIR CLEANER HUS-272235
...
536
CLEANER ASSEMBLY, AIR HUS-493492
...
617
SEAL, FUEL INTAKE TUBE HUS-270344
...
620
PLATE, CARBURETOR CONTROL HUS-495486
...
621
SWITCH, STOP HUS-396847
...
634
WASHER, THROTTLE SHAFT HUS-281080
...
643
CUP, AIR CLEANER HUS-280972
...
670
SPACER, FUEL TANK HUS-94038
...
729
CLIP, WIRE HUS-280470
...
922
SPRING, BAND BRAKE HUS-261647
...
923
BRAKE ASSEMBLY, BAND HUS-394867
...
933
PIVOT, BAND BRAKE HUS-223448
...
934
SCREW, BAND BRAKE PIVOT HUS-94037
...
941
COVER, LINKAGE HUS-280395
...
942
BRACKET ASSEMBLY, LEVER HUS-493248

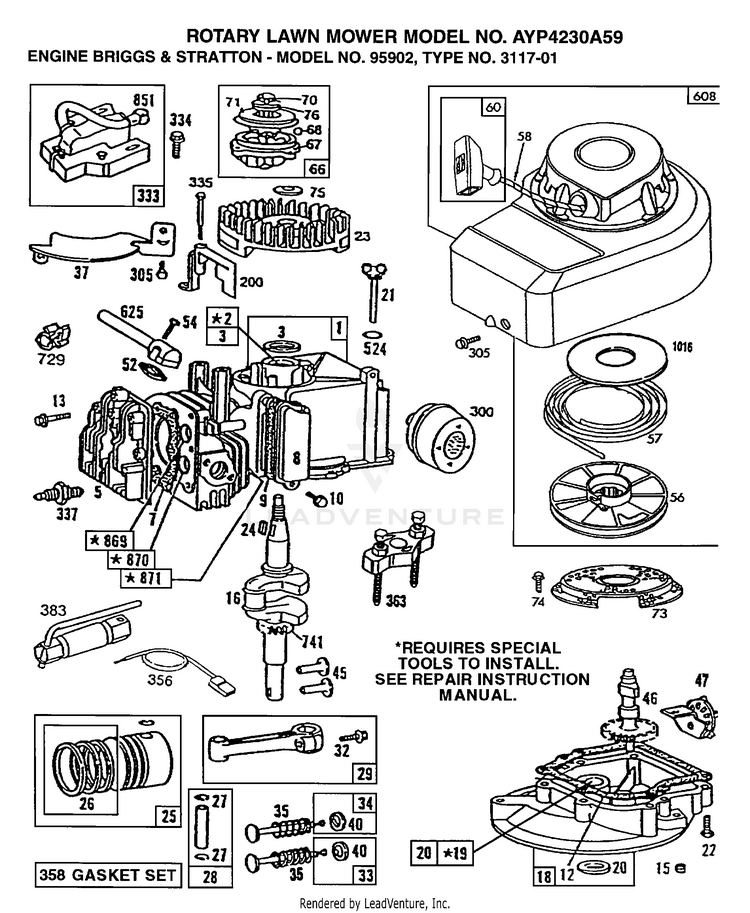

ENGINE/BRIGGS AND STRATTON

...
...
1
CYLINDER ASSEMBLY HUS-399164
...
2
BUSHING, CYLINDER HUS-293708
...
3
SEAL, OIL HUS-299819
...
5
HEAD, CYLINDER HUS-211479
...
7
GASKET, CYLINDER HEAD HUS-272536
...
8
BREATHER, VALVE CHAMBER HUS-495197
...
9
GASKET, VALVE COVER HUS-272602
...
10
SCREW, SEMS, BREATHER, MOUNTING HUS-93394
...
12
GASKET, CRANKCASE, STANDARD .015" HUS-270833
...
xx
GASKET, CRANKCASE .005" HUS-270895
...
xx
GASKET, CRANKCASE .009" HUS-270896
...
13
SCREW, CYLINDER HEAD HUS-93111
...
15
PLUG, OIL DRAIN HUS-94720
...
16
CRANKSHAFT HUS-492086
...
xx
CRANKSHAFT GEAR PIN HUS-230978
...
18
SUMP, ENGINE HUS-395384
...
19
BUSHING, ENGINE SUMP HUS-293709
...
20
SEAL, OIL HUS-391483
...
21
PLUG, OIL FILLER HUS-281081
...
22
SCREW, SEM, MOUNTING HUS-93032
...
23
FLYWHEEL, MAGNETO ROD ASSY, CONNECTING HUS-495046
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSEMBLY, STANDARD HUS-298904
...
xx
PISTON ASSEMBLY .010" OVERSIZE HUS-298905
...
xx
PISTON ASSEMBLY .020" OVERSIZE HUS-298906
...
26
RING SET, PISTON, STANDARD HUS-298982
...
xx
RING SET, PISTON, CHROME, STANDARD HUS-299742
...
xx
RING SET, PISTON .010" OVERSIZE HUS-298983
...
xx
RING SET, PISTON .020" OVERSIZE HUS-298984
...
xx
RING SET, PISTON .030" OVERSIZE HUS-298985
...
27
LOCK, PISTON PIN HUS-26026
...
29
ROD ASSEMBLY, CONNECTING HUS-294201
...
xx
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN HUS-296079
...
32
SCREW, CONNECTING ROD HUS-94404
...
33
VALVE, EXHAUST HUS-296676
...
34
VALVE, INTAKE HUS-296677
...
35
SPRING, INTAKE VALVE HUS-260552
...
37
GUARD, FLYWHEEL HUS-223150
...
40
RETAINER, VALVE SPRING HUS-93312
...
45
TAPPET, VALVE HUS-230173
...
46
GEAR, CAM HUS-491675
...
47
OIL SLINGER GEAR & BRACKET HUS-491688
...
52
GASKET, INTAKE ELBOW HUS-270345
...
54
SCREW HUS-93485
...
56
PULLEY, STARTER HUS-280439
...
57
SPRING, REWIND STARTER HUS-490179
...
58
ROPE, REWIND STARTER HUS-280406
...
60
HANDLE, REWIND STARTER HUS-393152
...
66
CLUTCH ASSEMBLY, REWIND STARTER HUS-399671
...
67
HOUSING, STARTER CLUTCH HUS-394897
...
68
BALL, CLUTCH HUS-63770
...
70
RATCHET, REWIND STARTER HUS-298799
...
71
WASHER, CLUTCH RETAINER HUS-394506
...
73
SCREEN, REWIND STARTER HUS-221661
...
74
SCREW, SEMS HUS-93758
...
75
WASHER, SPRING HUS-223047
...
76
WASHER, RATCHET SEALING HUS-68238
...
200
BLADE, GOVERNOR HUS-281024
...
300
MUFFLER, EXHAUST HUS-394569
...
305
SCREW, SEMS, BLOWER HOUSING MNT. HUS-94153
...
333
ARMATURE, MAGNETO HUS-398593
...
334
SCREW, SEMS HUS-94731
...
335
SCREW HUS-94732
...
337
PLUG, SPARK HUS-802592
...
356
WIRE, GROUND HUS-398808
...
358
GASKET SET HUS-298989
...
363
PULLEY, FLYWHEEL HUS-19069
...
524
SEAL, FILLER TUBE HUS-271485
...
608
STARTER ASSEMBLY, REWIND HUS-494495
...
625
TUBE, FUEL INTAKE HUS-298775
...
729
CLIP, WIRE HUS-280470
...
741
GEAR, TIMING HUS-261533
...
851
TERMINAL, IGNITION CABLE HUS-221798
...
869
SEAT, INTAKE VALVE, STANDARD HUS-211172
...
870
SEAT, EXHAUST VALVE, STANDARD HUS-211291
...
871
GUIDE, EXHAUST VALVE HUS-231348
...
xx
GUIDE, INTAKE VALVE HUS-63709

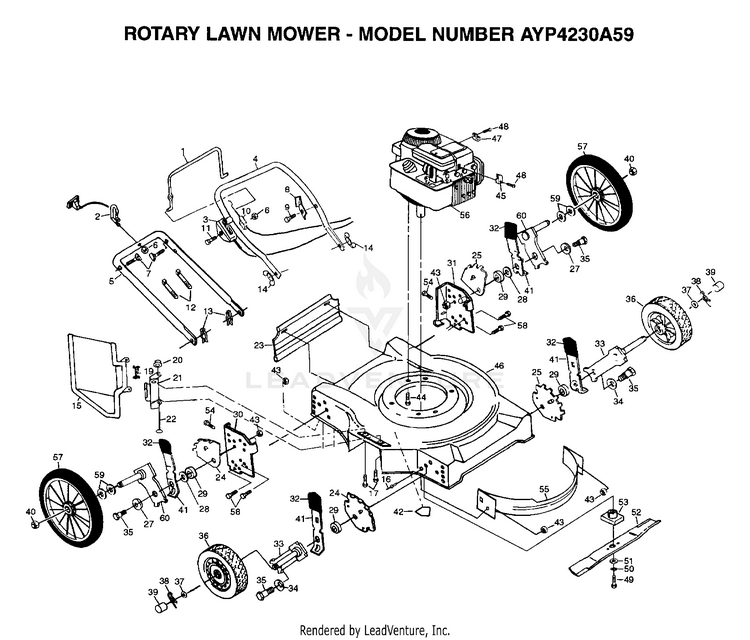

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM HUS-86902
...
2
ROPER GUIDE PM HUS-103672X
...
3
SUB= 532131922 HUS-131922
...
4
SUB= 160223X479 HUS-132649X479
...
5
HANDLE.LOWER.ECON HUS-142585X479
...
6
SUB= 73800400 HUS-63601
...
7
BOLT.HANDLE.LM HUS-131959
...
8
"BRKT,UPSTOP" HUS-850733X004
...
9
TAPPING SCREW HUS-750097
...
10
CABLE.CONT.ENG HUS-851809
...
11
SCREW.HXHD.WASH. HUS-144929
...
12
SUB= 7192J HUS-664-26
...
13
HAIRPIN COTTER HUS-51793
...
14
"NUT,WING PM" HUS-128638
...
15
"GRD,DISCHARGE" HUS-752052
...
16
BLIND RIVET HUS-128415
...
17
SCREW HUS-851856
...
19
"SPRING,TORSION" HUS-851855
...
20
PUSH ON SPEED NUT HUS-83731
...
21
"BRKT,HSG " HUS-851981X004
...
22
SUB= 150215 HUS-801728
...
23
SKIRT.RD.20/22 HUS-140543
...
24
BRACKET.WHL.ADJ.L HUS-133759X007
...
25
BRACKET.WHL.ADJ.R HUS-133757X007
...
27
WASHER HUS-61651
...
28
WASHER PM HUS-88348
...
29
SUB= 146630 HUS-84920
...
30
BRACKET.SUPT.HDLE HUS-142311X479
...
31
BRACKET.SUPT.HDLE HUS-142312X479
...
32
KNOB PM HUS-87877
...
33
AXLE ARM HUS-85021X004
...
34
"WASHER, BELLEVIL." HUS-62335
...
35
BOLT SHLD 3/8-16 HUS-142748
...
36
WHEEL ASSY HUS-130491
...
37
WASHER HUS-52160
...
38
RETAINER CLIP PM HUS-85179
...
39
HUB CAP-PLASTIC HUS-800090
...
40
HEX FLANGE LOCKNT HUS-83923
...
41
SPRING SELECTOR HUS-700331X004
...
42
DECAL-DANGER PM HUS-85463
...
43
LOCKNUT PM HUS-751592
...
44
SCREW HUS-850998
...
45
CABLE CLAMP HUS-111190X
...
46
KIT.HSG.20SD.PUSH HUS-146419
...
47
GUIDE CLIP PM HUS-87930
...
48
SCREW PM HUS-83816
...
49
SCREW HUS-851084
...
50
LOCKWASHER HUS-850263
...
51
"WASHER,HARDEN" HUS-851074
...
52
BLADE.STAND.20INC HUS-850972
...
53
BLADE ADAPTOR HUS-850977
...
54
SCREW HUS-54583
...
55
FRONT BAFFLE HUS-700839X479
...
57
WHL & TIRE HUS-851072
...
59
WAVE WASHER HUS-57143
...
60
"AXLE ARM,REAR PM" HUS-750913X004
...
xx
MANUAL.O.4230A59 HUS-146431
