Husqvarna 4221-84 (1998) Tractor

Model: 4221-84 (1998)

Back To Assemblies

Save Part Not Listed?
product name

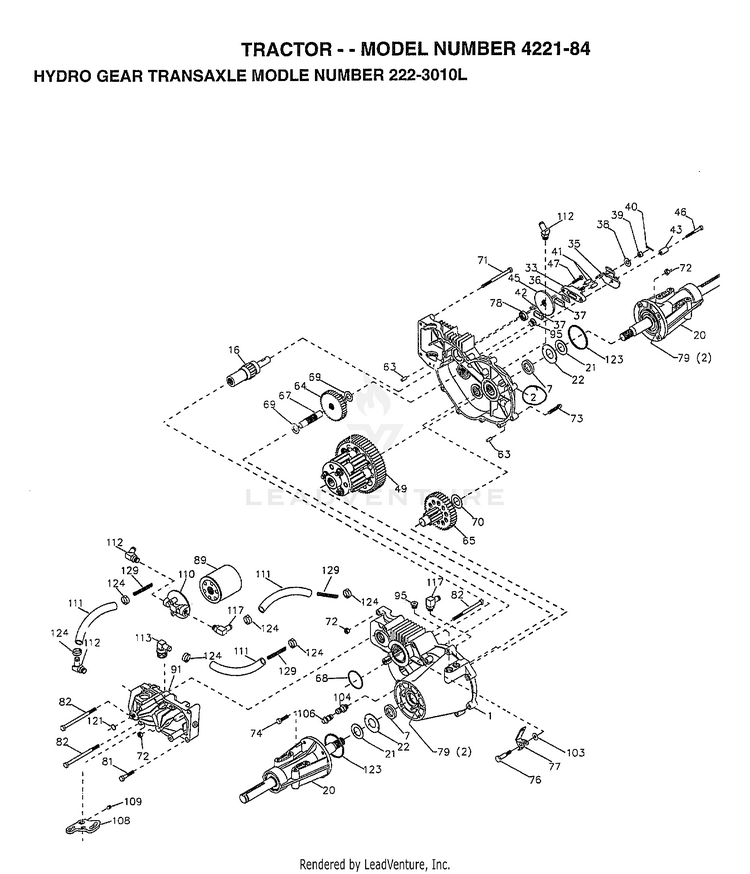

HYDRO GEAR TRANSAXLE

...
...
1
ASSEMBLY,HOUSING LH HUS-164591
...
2
ASSEMBLY,HOUSING RH HUS-164592
...
7
SEAL.OIL.44782.HY HUS-153765
...
16
SHAFT BRAKE 62877 HUS-142876
...
20
AXLE MTG 70087 HUS-142877
...
21
WASHER 44805 HUS-142878
...
22
WASHER 44806 HUS-142879
...
33
YOKE.BRAKE.62589 HUS-142929
...
35
ARM BRAKE 50214 HUS-142880
...
36
PUCK PLATE 44134 HUS-142882
...
37
PUCK BRAKE 44132 HUS-142883
...
38
WASHER HYD 44130 HUS-142884
...
39
SUB= 144607 HUS-142885
...
40
SUB= 144608 HUS-142886
...
41
PIN BRAKE 44127 HUS-142887
...
42
KEY HI PRO 44143 HUS-142888
...
43
SPACER 50259 HUS-142889
...
45
DISC BRAKE 44090 HUS-142890
...
46
BOLT 1/4-20 44276 HUS-142891
...
47
BOLT 1/4-20 44433 HUS-142892
...
49
DIFFRENTIAL.70251 HUS-153766
...
63
PIN DOWL 44757 HUS-142894
...
64
GEAR.14-38.44776 HUS-150818
...
65
PINION DRIV 70051 HUS-142897
...
67
SHAFT-44779 HUS-142898
...
68
O RING 44781 HUS-142899
...
69
WASHER 44795 HUS-142900
...
70
WASHER 44794 HUS-142901
...
71
BOLT 5/16 44827 HUS-142902
...
72
LOCKNUT.43064 HUS-153767
...
73
BOLT 5/16 44841 HUS-142904
...
74
SCREW 5/16 45089 HUS-142905
...
76
BOLT SHOULD 44785 HUS-142907
...
77
ARM FREEWHL 44786 HUS-142908
...
78
SEAL.OIL.44761 HUS-142909
...
79
SUB= 126976X HUS-153768
...
81
BOLT 5/16 43084 HUS-142910
...
82
BOLT 5/16 44820 HUS-142911
...
89
FILTER SPIN 50037 HUS-142912
...
91
PUMP.BDU-10L-122 HUS-153769
...
95
PLUG.9005110-5600 HUS-142914
...
96
FITTING.SAE.50257 HUS-153770
...
103
WASHER.50169 HUS-142916
...
104
CAP.VENT.70109 HUS-142917
...
106
O-RING.ASM.70110 HUS-142918
...
108
ARM.CONTROL.45007 HUS-142919
...
109
SCREW.SET.50018. HUS-142920
...
110
FILTER.HEAD.50207 HUS-142921
...
111
HOSE.50632 HUS-150820
...
112
FITTING.SAE.50604 HUS-150823
...
113
FITTING.SAE.50592 HUS-150821
...
117
FITTING.SAE.50589 HUS-150822
...
123
O-RING.50405 HUS-150824
...
124
CLAMP.50590 HUS-150825
...
129
SPRING.LONG.50667 HUS-153771
