product name

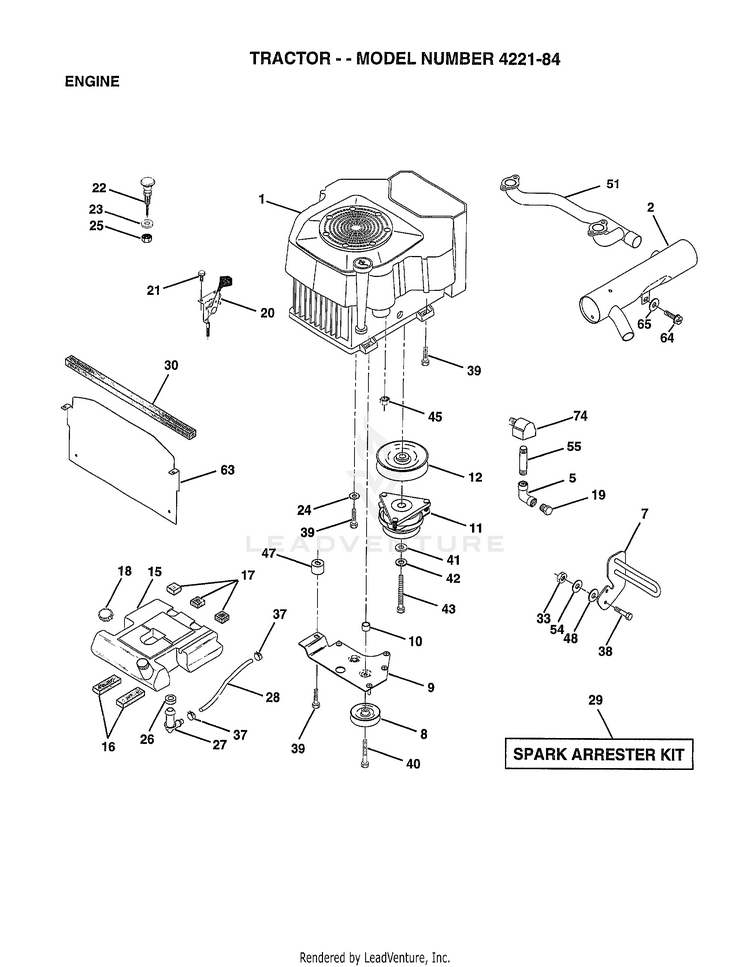

Husqvarna 4221-84 (1998) Tractor

Model: 4221-84 (1998)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
2
MUFFLER SIDE1-1/8 HUS-161062
...
5
ELBOW HUS-13200300
...
7
GUARD.MUFFLER.ASM HUS-151396
...
8
SUB= 139123 HUS-121361X
...
9
KEEPER ASM BELT HUS-150828
...
10
BUSHING. HUS-105432X
...
11
SUB= 150283 HUS-140923
...
12
PULLEY.ENG.CLUTCH HUS-143996
...
15
TANK FUEL REAR HUS-151346
...
16
PAD IDLER TI HUS-109227X
...
17
PAD-SPACER LT HUS-106082X
...
18
CAP ASM FUEL HUS-140527
...
19
PLUG T HUS-13290300
...
20
SUB= 532132748 HUS-132747
...
21
SCREW LT HUS-17720410
...
22
CHOKE CONTROL HUS-132781
...
23
WASHER HUS-19131316
...
24
LOCKWASHER HUS-11050600
...
25
"NUT,KEPS 3/8-24IM" HUS-73920600
...
26
BUSHING OUTLET T HUS-3645J
...
27
STEM.TANK.FUEL HUS-139277
...
28
SUB= 8542R HUS-7834R
...
29
SPARK ARREST KIT HUS-132920
...
30
FOAM-STRIP LT HUS-105037X
...
33
NUT HUS-73800600
...
37
HOSE CLAMP HUS-123487X
...
38
"BOLT,HEX" HUS-74780624
...
39
SCREW.3/8-16X2.25 HUS-17490636
...
40
SCREW.TT.3/8-16X4 HUS-17490664
...
41
WASHER HUS-126197X
...
42
LOCKWASHER HUS-10040700
...
43
BOLT.7/16-20X4.25 HUS-150280
...
45
NUT HUS-128861
...
47
SPACER.ENGINE HUS-142040
...
48
WASHER T HUS-19132007
...
51
MANIFOLD PIPE VGT HUS-161230
...
54
WASHER HUS-19131414
...
55
PIPE NIPPLE LT HUS-13280336
...
63
HEAT.SHIELD.VGT. HUS-145549
...
64
SCREW HUS-17490612
...
65
WASHER HUS-19131614
...
74
ELBOW STREET BASS HUS-162295
