product name

Husqvarna 4220-74 (1997) Tractor

Model: 4220-74 (1997)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

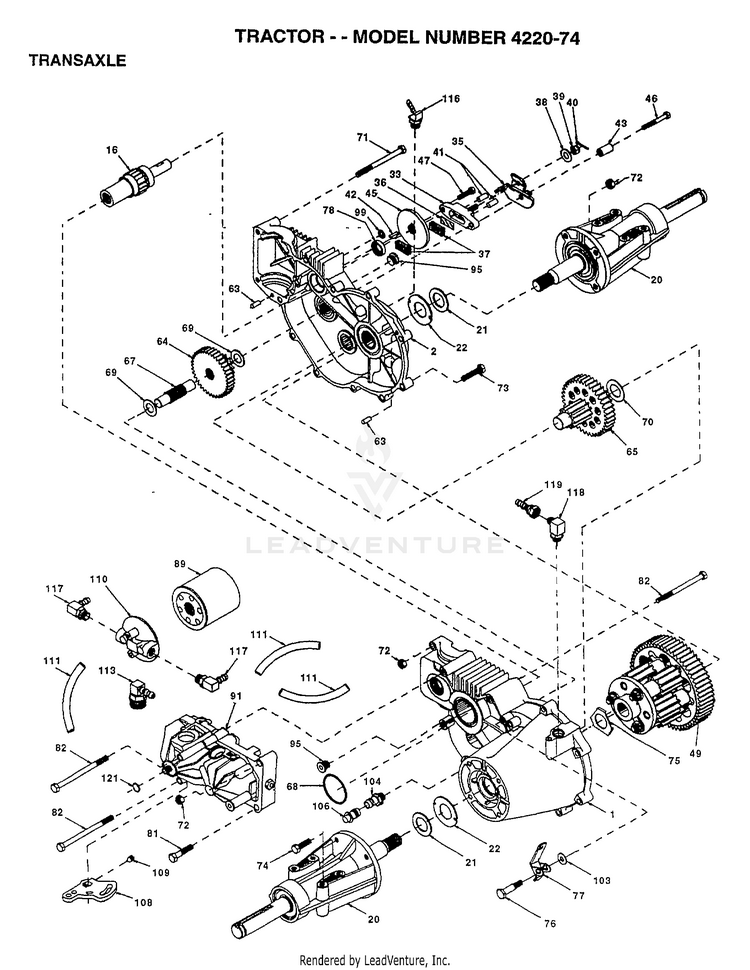

TRANSAXLE

...
...
1
HOUSING LH 70086 PLN-142874

...
2
HOUSING RH 70088 PLN-142875

...
16
SHAFT BRAKE 62877 PLN-142876

...
20
AXLE MTG 70087 PLN-142877

...
21
WASHER 44805 PLN-142878

...
22
WASHER 44806 PLN-142879

...
33
YOKE.BRAKE.62589 PLN-142929

...
35
ARM BRAKE 50214 PLN-142880

...
36
PUCK PLATE 44134 PLN-142882

...
37
PUCK BRAKE 44132 PLN-142883

...
38
WASHER HYD 44130 PLN-142884

...
39
SUB= 144607 PLN-142885

...
40
SUB= 144608 PLN-142886

...
41
PIN BRAKE 44127 PLN-142887

...
42
KEY HI PRO 44143 PLN-142888

...
43
SPACER 50259 PLN-142889

...
45
DISC BRAKE 44090 PLN-142890

...
46
BOLT 1/4-20 44276 PLN-142891

...
47
PUCK PLATE 44134 PLN-142882

...
49
DIFFERENTIAL62834 PLN-142893

...
63
PIN DOWL 44757 PLN-142894

...
64
GEAR R14-38 44775 PLN-142896

...
65
PINION DRIV 70051 PLN-142897

...
67
SHAFT-44779 PLN-142898

...
68
O RING 44781 PLN-142899

...
69
WASHER 44795 PLN-142900

...
70
WASHER 44794 PLN-142901

...
71
BOLT 5/16 44827 PLN-142902

...
72
NUT HXLK 43064 PLN-142903

...
73
BOLT 5/16 44841 PLN-142904

...
74
SCREW 5/16 45089 PLN-142905

...
75
WASHER DIF 44880 PLN-142906

...
76
BOLT SHOULD 44785 PLN-142907

...
77
ARM FREEWHL 44786 PLN-142908

...
78
SEAL.OIL.44761 PLN-142909

...
81
BOLT 5/16 43084 PLN-142910

...
82
BOLT 5/16 44820 PLN-142911

...
89
FILTER SPIN 50037 PLN-142912

...
91
SUB= 144576 PLN-142913

...
95
PLUG.9005110-5600 PLN-142914

...
99
SUB= 142904 PLN-142915

...
103
WASHER.50169 PLN-142916

...
104
CAP.VENT.70109 PLN-142917

...
106
O-RING.ASM.70110 PLN-142918

...
108
ARM.CONTROL.45007 PLN-142919

...
109
SCREW.SET.50018. PLN-142920

...
110
FILTER.HEAD.50207 PLN-142921

...
111
HOSE.5/16.50208. PLN-142922

...
113
FITTING.SAE.50210 PLN-142923

...
116
FITTING.SAE.50213 PLN-142924

...
117
FITTING.SAE.50249 PLN-142925

...
118
FITTING.MAL.50251 PLN-142926

...
119
FITTING.FEM.50250 PLN-142927

...
121
RING.RET.2003016. PLN-142928
...
...
...
