Husqvarna 4220-74 (1997) Tractor

Model: 4220-74 (1997)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

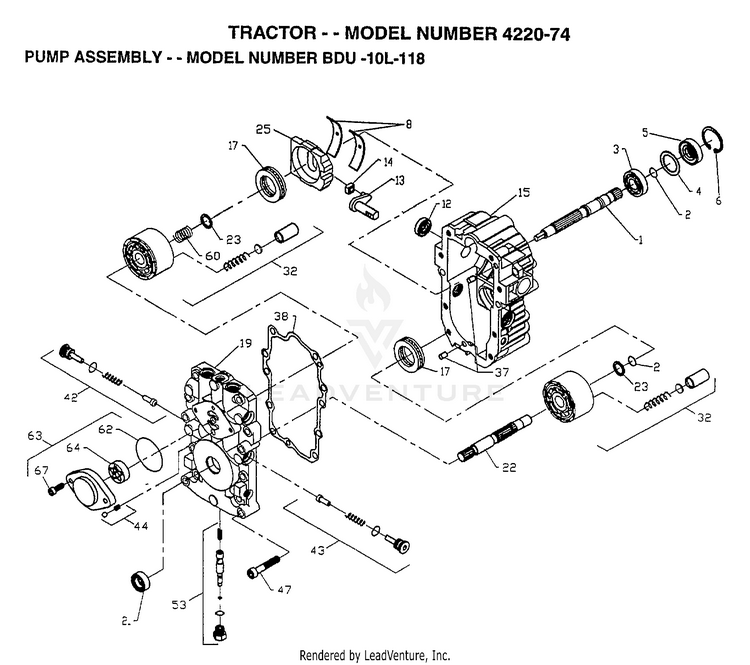

PUMP ASSEMBLY

...
...
1
SHAFT.PUMP.50158 PLN-144569

...
2
RETAINIANG RING-(2003016) PLN-122716X

...
3
BALL BEARING PLN-122745X

...
4

...
5
SEAL LIP PLN-122700X

...
6
RING.RET.2003052 PLN-122699X

...
8
CRADLE BEARING (2003023) PLN-122767X

...
12
SEAL.9008000-0126 PLN-122717X

...
13
TRUNION ARM (2003005) PLN-122748X

...
14
GUIDE.2000015.HYD PLN-122749X

...
15
KIT.HSG.2513035. PLN-144571

...
17
SUB= 142936 PLN-122770X

...
19
KIT.CENT.2513006 PLN-144572

...
21
LIP SEAL-9008000-0127 PLN-122722X

...
22
SHAFT.MOT.2003034 PLN-144573

...
23
WASHER.2003017 PLN-142978

...
25
"SWASHPLATE,VARIAB" PLN-127148X

...
32
BLOCK.CLYN.70079. PLN-142938

...

...
38
GASKET.20030600 PLN-122718X

...
42
KIT.VALVE.2510050 PLN-144578

...
43
KIT.VALVE.2510050 PLN-144578

...
44
KIT.RELI.2510011. PLN-144579

...
47
SCREW9007314-0808 PLN-122752X

...
53
"KIT,BYPASS VALVE" PLN-127153X

...
60
SPRING.2003014. PLN-142977

...
62
0RING.90041011340 PLN-144581

...
63
KIT.CHARG.2513027 PLN-144582

...
64
GEROTOR.J1041008 PLN-144583

...
67
SCREW.CAP.50095. PLN-144584

...
xx
PUMP.BD-10L-118 PLN-144576
...
...
...
