Husqvarna 4220-74 (1997) Tractor

Model: 4220-74 (1997)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

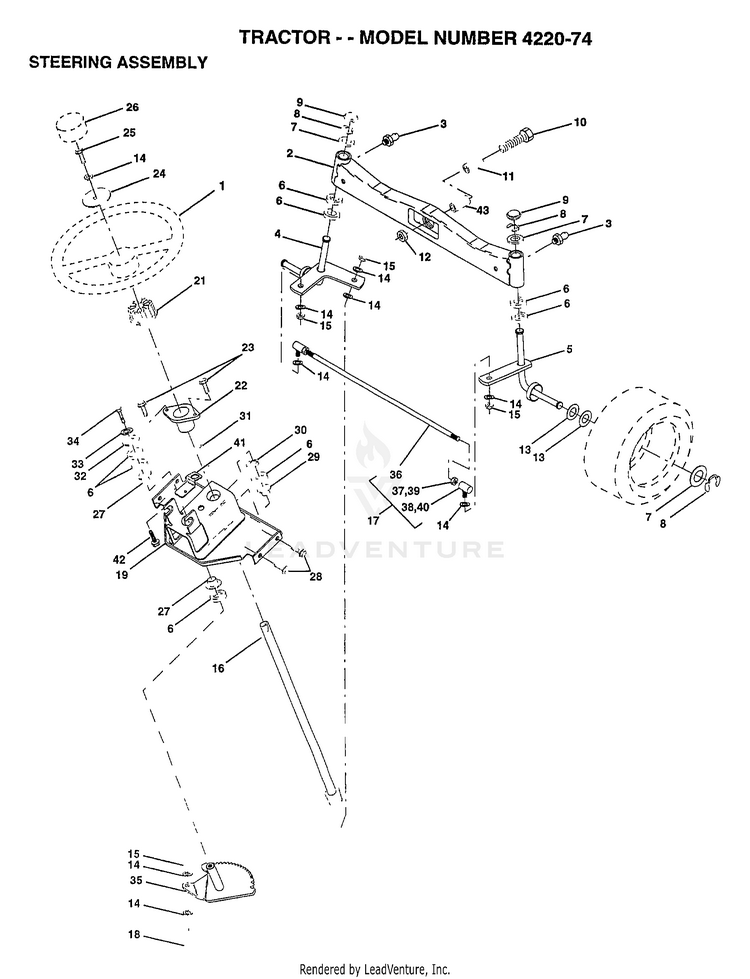

STEERING ASSEMBLY

...
...
1
SUB= 150546 PLN-121472X

...
2
SUB= 532137094 PLN-137094

...
3
ZERK M PLN-6855M

...
4
SPINDLE.ASM.LH PLN-136960

...
5
SUB= 918136959 PLN-136959

...
6
WASHER .T PLN-6266H

...
7



...

...
11
BEARING AXLE PLN-154779

...
12
"NUT-LOC,FLANGE LT" PLN-73901000

...
13

...
14
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600

...
15
GRIPCO NUT PLN-7810H

...
16
SHAFT.STEER.VGT PLN-145103

...
17
ROD.ASM.TIE.BALL PLN-137347

...
18
DRAGLINK.BALL.JOI PLN-137155

...
19
SUPPORT ASM-STEER PLN-156011

...
21
ADAPTER LT PLN-100711L

...
22
"BUSHING,STEERING" PLN-155105

...
23
"SCREW-TT,10-32 FL" PLN-152927

...
24
WASHER T PLN-19133808

...

...
26
"INSERT,STR WHEEL" PLN-126805X

...
27
COL. SRTG. BEAR. PLN-3366R

...
28

...
29
"FLANGE GT, BEAR." PLN-104239X

...
30
KLIP RING PLN-12000034

...
31
BUSHING.NYLINER. PLN-138136

...
32

...
33
LOCKWASHER PLN-10040500

...

...
35
GEAR.ASM.SECTOR. PLN-138059

...
36
SUB= 137347 PLN-137156


...
38
JOINT.RH PLN-109850X


...
40
JOINT.LH PLN-109851X

...
41
"BRKT-SW, INTER" PLN-155246

...
42
SCREW LT PLN-17490508

...
43
SPACER AXLE PLN-154780
...
...
...
